HEAT RESISTANT CLOTH - 18IN. X 18IN. KEYHOLE WITH CUTOUT FOR DRAPING OVER PIPES/TUBES
Item#: 16510
- Protects walls, doors, equipment, components, and nearby surfaces from torch flames when smoldering, brazing, or welding
- Withstands up to 2300°F
- Contains no asbestos
- Flexible
- High resistance to acids
- Tested to the ANSI/FM 4950 Standard
- Keyhole allows for welding and brazing around pipes
Uniweld Flame Tip
Acetylene Consumption SCFH: 5 - 9
Oxygen Pressure (PSIG): 10
Acetylene/Fuel Pressure (PSIG): 7
Overall Length: 8-1/2"
Brazing Copper Tubing [up to]: 2"
Part #: MTF-9

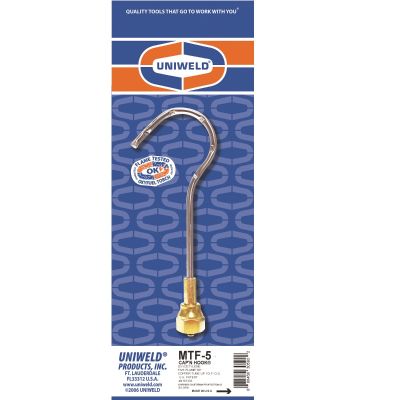

Uniweld Flame Tip
Acetylene Consumption SCFH: 4 - 6
Oxygen Pressure (PSIG): 8
Acetylene/Fuel Pressure (PSIG): 5
Overall Length: 5-1/2"
Brazing Copper Tubing [up to]: 1"
Part #: MTF-5
Uniweld Welding And Cutting Outfit
Welding Handle: 71
Weld/Braze Tip: TYPE17-2
Oxygen Regulator: RSOB CGA540
Acetylene Regulator: RSMC2B CGA200
Carrying Stand: 511 Plastic
Cylinders: Not Included
Part# K22P-T
Uniweld Receiver Tank
Gas Service: Acetylene
Capacity: 40 Cu Ft. (Approx)
Dimensions: 6" diameter x 23.25" height w/ valve
Weight: 25.5 lbs
CGA Connection: 520
Part# B40
- .050" x 1/8" x 20"
- 15% Silver, 6% Phosphorus, remainder Copper
- Similar to 15% silphos with the ability to fill gaps and form fillets without adversely affecting strength
- Phosphorus acts as a fluxing agent when joining copper to copper.
- Solidus Temperature: 1190°F, 643°C
- Liquidus Temperature: 1495°F, 813°C
- Recommended Brazing Range: 1325-1500°F, 720-815°C
- Meets AWS BCuP-3
- .050" x 1/8" x 20"
- 0% Silver, 6% Phosphorus, remainder Copper
- Similar to 15% silphos with the ability to fill gaps and form fillets without adversely affecting strength
- Phosphorus acts as a fluxing agent when joining copper to copper.
- Solidus Temperature: 1190°F, 643°C
- Liquidus Temperature: 1495°F, 813°C
- Recommended Brazing Range: 1325-1500°F, 720-815°C
- Meets AWS BCuP-3
- .050" x 1/8" x 20"
- 5% Silver, 6% Phosphorus, remainder Copper
- Similar to 15% silphos with the ability to fill gaps and form fillets without adversely affecting strength
- Phosphorus acts as a fluxing agent when joining copper to copper.
- Solidus Temperature: 1190°F, 643°C
- Liquidus Temperature: 1495°F, 813°C
- Recommended Brazing Range: 1325-1500°F, 720-815°C
- Meets AWS BCuP-3
BERNZOMATIC Map-Pro Gas Cylinder
The Bernzomatic® 14.1 oz MAP-Pro® Hand Torch Cylinder enables you to complete tasks faster and more efficiently using a higher burn temperature than standard propane. MAP-Pro is premium fuel suited for a variety of job site projects including soldering large copper pipes, brazing and heat treating. The durable steel cylinder is the slim and lightweight for easy gripping and maneuvering. This product is compatible with our Digital Fuel Gauge to easily measure how much fuel is remaining in the cylinder. MAP-Pro fuel has an in-air flame temperature of 3,730 degrees Fahrenheit.
SPECS & FEATURES
Slim, Lightweight, Portable- Standard CGA 600 Connection
- Flame Temperature In Air: 3,730 Degrees Fahrenheit
- Limited 1-Year Warranty
- Model Number MG9
Made in the USA with global components
