SUPCO TD69 TOOL

SKU
PTSU-TIM01-01
TTD 98.65
Out of stock

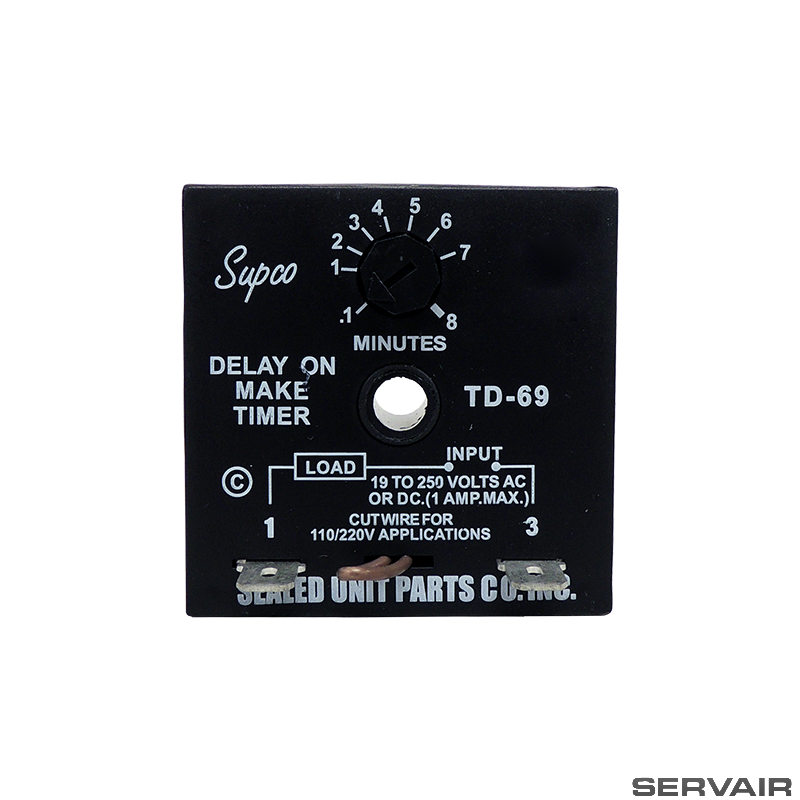

Supco Delay On Make Timer
Model#: TD69

Time Delay on Make Timers (DOM)

Features/Benefits

  • 1/4" male quick connect terminals
  • Adjustable time delay on make 6 seconds to 8 minutes
  • Cut the jumper wire to use in 110/250 volts
  • Delay on Make Timer (DOM)

SPECIFICATIONS

Input Voltage VAC/VDC: 19-250
Maximum Load Amps: 1
Maximum Amps Inrush: 10
Minimum Load Current: 40 Milliamps @ 24VAC
Operating Temperature: 0° to 160°F (-18° to 71°C)
Mounting Type: Non-positional, single hole
Connection: 1/4" Quick Connect Terminals

APPLICATIONS

Ideal for compressor staging
Protection from short cycling of compressor
HVAC&R compressors

We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.

More Information
Brand Supco
