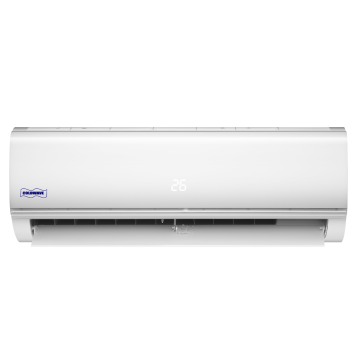

COLDWAVE FOREST 11000 BTU/H AIR CONDITIONER
Refrigerant: R410A
230V 1Ph 60Hz
Price is for unit only, and includes VAT
Please select an installation option below
Site Visit Mandatory before Purchase*
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: [email protected]
Phone:1(868)-658-1910 / 1911 / 2010
TECHNICAL SPECIFICATIONS
| Series | Forest on-off 12/18/24k | ||||
| Model | SSAFB-12CRN1-NB8 | SSAFC-18CRN1-NB8 | SSAFD-24CRN1-NB8 | ||
| Power supply | V-Ph-Hz | 220-230V,1Ph,60Hz | |||
| Cooling (Standard conditions) | Capacity | Btu/h | 12000 | 18000 | 24000 |
| Input | W | 1250 | 1820 | 2500 | |
| Current | A | 5.9 | 8.44 | 11.4 | |
| EER | W/W | 2.81 | 2.90 | 2.81 | |
| Rated Power Input | W | 1790 | 2350 | 3000 | |
| Rated Current | A | 9.2 | 12 | 15.5 | |
| Starting current | A | 28 | 35.6 | 58 | |
| Compressor | Model | ASM113N21UEZ | PA155M2A-3ETL1 | KSF230N1VKTB | |
| Type | ROTARY | ||||
| Brand | GMCC | ||||
| Capacity | W | 3275/3310 | 5395/5430 | 8565/8650 | |
| Input | W | 1130/1180 ±3% | 1255/1270 | 2020/2100 | |
| Rated current(RLA) | A | 5.85/5.45 ±3% | 6.10/5.65 | 9.85/9.45 | |
| Locked rotor Amp(LRA) | A | 28 ±10% | 35.6 | 58±10% | |
| Thermal protector | HPA-522 | HPA -732H | HPA-452 | ||
| Thermal protector position | INTERNAL | ||||
| Capacitor | μF | 45.0 | 50.0 | 55.0 | |
| Refrigerant oil/oil charge | ml | ESTEL OIL VG68 ·300±15 | ESTEL OIL VG74/290 | VG74 410±15 ml | |
| Indoor fan motor | Model | YKFG-20-4-10L | YKFG-28-4-6-5 | YKFG-45-4-13 | |
| Input | W | 47.4 | 58.5 | 89.0 | |
| Capacitor | uF | 1.5 | 1.5 | 3 | |
| Speed(Hi/Mi/Lo) | r/min | 1150/950/850 | 1180/1000/850 | 1200/1000/850 | |
| Indoor air flow (Hi/Mi/Lo) | m3/h | 540/430/380 | 758/615/500 | 1000/800/630 | |
| Indoor noise level (Hi/Mi/Lo) | dB(A) | 39.5/33/30.5 | 39.5/35.5/30.5 | 46/39.5/34.5 | |
| Indoor unit | Dimension(W*D*H) | mm | 805x194x285 | 957x213x302 | 1040x220x327 |
| Packing (W*D*H) | mm | 870x270x365 | 1035x295x385 | 1120x405x315 | |
| Net/Gross weight | kg | 8/10.2 | 11.0/13.8 | 13.6/17 | |
| Outdoor fan motor | Model | YKT-24-6-236L | YKT-48-6-219-1 | YKT-48-6-219-1 | |
| Capacitor | uF | 2 | 2.5 | 3.0 | |
| Speed | r/min | 800/650 | 880 | 830 | |
| Outdoor air flow | m3/h | 1800 | 2100 | 2500 | |
| Outdoor noise level | dB(A) | 52 | 58.5 | 55.5 | |
| Outdoor unit | Dimension(W*D*H) | mm | 720x270x495 | 765x303x555 | 805x330x554 |
| Packing (W*D*H) | mm | 835x300x540 | 887x337x610 | 915x370x615 | |
| Net/Gross weight | kg | 24.3/26 | 32.6/34.9 | 37.7/40.4 | |
| Refrigerant type | kg | R410A/0.48 | R410A/0.65 | R410A/1.05 | |
| Design pressure | MPa | 4.2/1.5 | 4.2/1.5 | 4.2/1.5 | |
| Max. refrigerant pipe length | m | 20 | 25 | 25 | |
| Max. difference in level | m | 8 | 10 | 10 | |
| Connection wiring | 1.5x3// | 1.5x3// | 2.5x3// | ||
| Plug type | 16#x3/SP008弯插 | 14#x3/no-plug | 2.5x3/no-plug | ||
| Thermostat type | Remote Control | ||||
| Operation temperature | ℃ | 17~30 | |||
| Room temperature | Indoor(cooling/ heating) | ℃ | 17～32// | ||
| Outdoor(cooling/heating) | ℃ | 18～43// | |||
| Application area (Cooling Standard) | m2 | 16～23 | 24～35 | 32～47 | |
| Brand | Coldwave |
|---|
