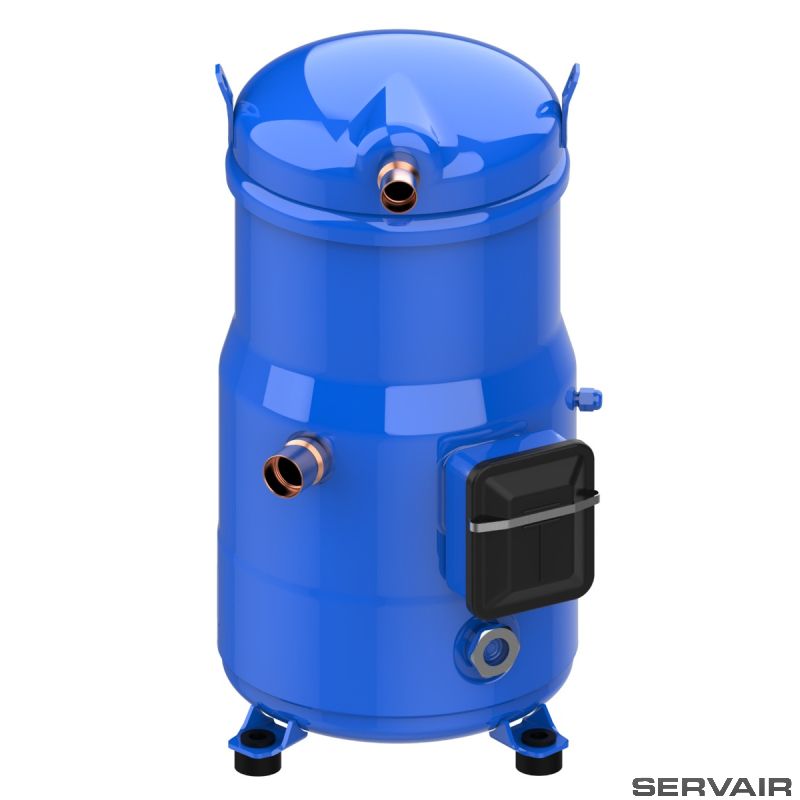

DANFOSS SH090A3AL SCROLL COMPRESSOR
Danfoss Scroll Compressor SH090A3AL
Refrigerants: R410A
Segment usage: Air conditioning
Compressor power supply [V]: 200-230/3/60
Packing format: Industrial pack
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
61.91 Kg |
|
Net weight |
58 Kg |
|
Volume |
0.095 Cubic.mtr |
|
EAN |
5702428801843 |
|
Approval |
CE |
|
Brand technique |
Scroll compressor |
|
Capacity control |
Fixed speed |
|
China RoHS compliance |
Out of scope |
|
Colour |
Blue |
|
Compressor power supply [V] |
200-230/3/60 |
|
Configuration code |
Single |
|
Connection type |
Brazed |
|
Description |
SH090-3 |
|
Diameter [mm] |
243 mm |
|
Discharge connection height [mm] |
451 mm |
|
Discharge connection pipe size [in] |
7/8 in |
|
Discharge connection size [in] |
7/8 in |
|
Drawing number |
8560004 |
|
Economizer |
No |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
|
Factory HP [bar] |
0 bar |
|
Factory LP [bar] |
0 bar |
|
Family |
SH |
|
Fitting standard |
ODF |
|
Frequency [Hz] |
60 |
|
Gauge port HP |
None |
|
Glass mounting |
Threaded |
|
Glass torque [Nm] |
50 N-m |
|
High Side TS Max |
150 °C |
|
High Side TS Min |
-35 °C |
|
High Side Volume |
0.7 L |
|
High value of nominal voltage at 60Hz [V] |
230 V |
|
High value of voltage range at 60Hz [V] |
253 V |
|
In scope of WEEE and contain batteries |
No |
|
IP protection class |
IP54 (with cable gland) |
|
Low Side TS Max |
55 °C |
|
Low Side TS Min |
-35 °C |
|
Low Side Volume |
11.7 L |
|
Low value of nominal voltage at 60Hz [V] |
200 V |
|
Low value of voltage range at 60Hz [V] |
180 V |
|
LRA |
203 A |
|
Max pressure (PS) - high side |
48.7 bar |
|
Max pressure (PS) - low side |
33.3 bar |
|
Maximum Operating Current [MOC] |
38 A |
|
MCC |
43 A |
|
Model number |
SH090A3ALC |
|
Motor protection |
Internal overload protector |
|
Mounting torque [Nm] |
15 N-m |
|
Network power supply [V/Ph/Hz] |
208-230/3/60 |
|
Number of starts per hour [Max] |
12 |
|
Oil charge [L] |
3 L |
|
Oil equalization |
1-3/4"Rotolock |
|
Oil reference |
160SZ |
|
Oil type |
POE |
|
Packaging height [mm] |
680 mm |
|
Packaging length [mm] |
1150 mm |
|
Packaging weight [Kg] |
494 kg |
|
Packaging width [mm] |
950 mm |
|
Packing format |
Industrial pack |
|
Packing quantity |
8 |
|
Phase |
3 |
|
Power connections |
Screw 4.8 mm |
|
Product group |
Hermetic compressors |
|
Product Name Description |
Scroll compressor SH |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerant charge [kg] [Max] |
5.9 kg |
|
Refrigerants |
R410A |
|
RLA |
30.7 A |
|
Rotational speed at 60Hz [rpm] |
3500 rpm |
|
SCIP dossier no. |
bff3e2c3-5aad-40f0-b874-7eee67aaf788 |
|
SCIP dossier product name |
CSHD092-183/DSF090-200/DSH090-184/SH090-184/SJ161/WSH090-184 |
|
Segment usage |
Air conditioning |
|
Shipped instructions |
Installation instructions |
|
Shipped mounting |
Mounting kit with grommets, bolts, nuts, sleeves and washers |
|
Shipped oil |
Initial oil charge |
|
Suction connection height [mm] |
235 mm |
|
Suction connection material |
- |
|
Suction connection pipe size [in] |
1 1/8 in |
|
Suction connection size [in] |
1 1/8 in |
|
Swept volume [cm3] |
88.4 cm³ |
|
Technology |
Scroll |
|
Test dif [bar] [Max] |
37 bar |
|
Test HP [bar] [Max] |
48.7 bar |
|
Test LP [bar] [Max] |
33.3 bar |
|
Torque earth [Nm] |
2 N-m |
|
Torque power [Nm] |
3 N-m |
|
Total height [mm] |
482 mm |
|
Type |
SH090 |
|
UK RoHS compliance |
Out of scope |
|
Viscosity [cP] |
32 cP |
|
Winding resistance for three-phase compressors with identical windings [Ohm] |
0.39 Ohm |
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
| Brand | Danfoss |
|---|
