SC15G SECOP REFRIGERATION COMPRESSOR
SC15G Reciprocating Compressor
Nominal voltage limits: 208-230V/60Hz
Refrigerant: R134a
Operating Back Pressure: MBP
Cooling Type: Fan cooling 3.0 m/s necessary
Motor Type: CSiR
Running capacitance (uF): -/-
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Model
|
Designation SC15G |
208-230V/60Hz 1~ |
Sales code: 104G8526 |
|
Compressor design |
|||
|
Oil type |
Polyolester |
Refrigerant(s) |
R134a |
|
Oil viscosity |
22cST |
Displacement |
15,28cm³ / 0,93cu.in |
|
Oil quantity |
500cm³ / 16,9fl.oz |
Compressors on pallet |
80 |
|
Refr. charge - tech. limit |
1300g / 45,9oz |
|
|
|
Free gas volume comp. |
1410cm³ / 47,7fl.oz |
|
|
|
Weight |
13,2kg / 29,1lbs |
|
|
|
Motor protection |
1# internal |
|
|
|
Winding resistance main |
4,4Ω (at 25°C) |
|
|
|
Winding resistance aux |
14Ω (at 25°C) |
|
|
|
Max. winding temp. |
125°C / 257°F |
|
|
|
Max. discharge temp. |
135°C / 275°F |
|
|
|
General - Configurations with SC15G |
|
|
|
Conf. 1 |
|
Motorconfiguration |
CSIR |
|
Power supply (nominal) |
208-230V/60Hz |
|
Number of phases |
1 |
|
Voltage range |
187-254V |
|
Approvals |
VDE, UL, KC |
|
Starting torque |
HST |
|
Note |
- / - |
|
Applications with SC15G |
|
|
|
Conf. 1 |
|
Refrigerant |
R134a |
|
Application |
MBP |
|
System cooling |
fan 3m/s |
|
Hot gas defrost |
OK |
|
Long interval pull down |
OK |
|
Electrical data - Configurations with SC15CLX.2 |
|
|
|
Conf. 1 |
|
Starting device type |
relay |
|
Run capacitor |
-/- |
|
Start capacitor |
80µF |
|
LRA (locked rotor amps / 4s) |
|
|
RLA (rated load amps / 1s) |
-/-A |
|
Cut in current |
|
Compressor Dimensions
|
Housing |
A Height |
|
209mm / 8,23in |
||
|
|
B Height |
|
203mm / 7,99in |
||
|
|
C Length shell |
|
218mm / 8,58in |
||
|
|
D Length w. cover |
255mm / 10,04in |
|||
|
|
E Width |
|
151mm / 5,94in |
||
|
Connectors |
Suction |
Discharge |
Process |
||
|
|
X |
|
Y |
Z |
|
|
Diameter |
[mm] |
øi 10,11-10,29 |
øi 6,41-6,59 |
øi 6,41-6,59 |
|
|
(i:inside, o:outside) |
[in] |
øi 0,4-0,41 |
øi 0,25-0,26 |
øi 0,25-0,26 |
|
|
Material |
copper |
copper |
copper |
||
|
Horizontal angle |
±2° |
37° |
37° |
143° |
|
|
Vertical angle |
±2° |
30° |
|
0° |
150° |
|
Position l/h/w |
[mm] |
107/183/55 |
115/100/63 |
-107/183/55 |
|
|
4,2/7,2/2,2 |
4,5/3,9/2,5 |
-4,2/7,2/2,2 |
|||
|
|
[in] |
||||
|
Straight tube l. |
[mm] |
12 |
|
12 |
12 |
|
0,5 |
0,5 |
0,5 |
|||
|
|
[in] |
||||

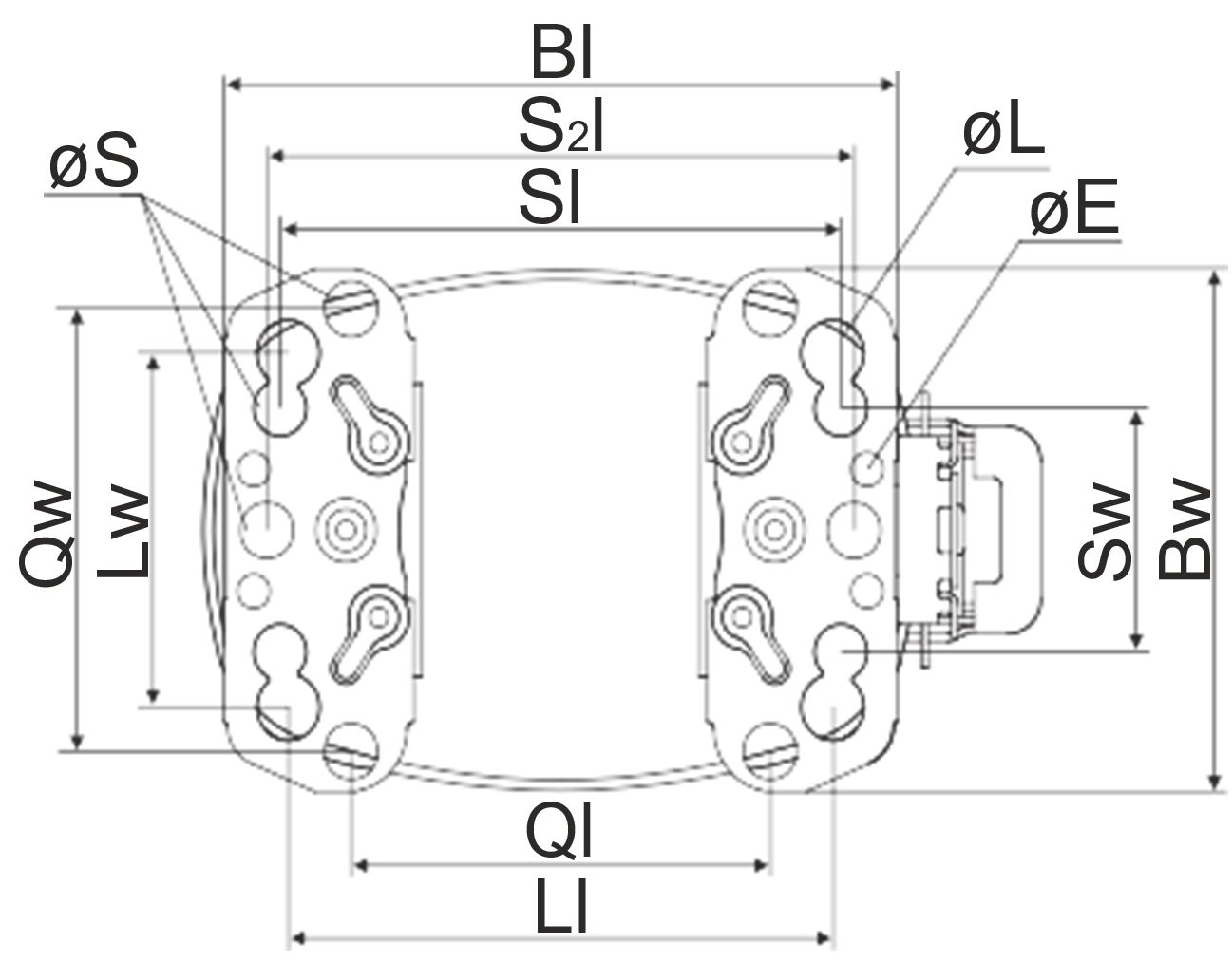

Compressor Fixation
|
Baseplate |
[mm] |
[inch] |
|
Bl |
204 |
8.03 |
|
Bw |
150 |
5.9 |
|
øE |
ø 9.7 |
ø 0.38 |
|
Large holes |
[mm] |
[inch] |
|
Ll |
165 |
6.5 |
|
Lw |
101.6 |
4 |
|
øL |
ø 19 |
ø 0.75 |
|
Small holes |
[mm] |
[inch] |
|
Sl |
170 |
6.7 |
|
Sw |
70 |
2.76 |
|
øS |
ø 16 |
ø 0.63 |
|
Ql |
127 |
5 |
|
Qw |
127 |
5 |

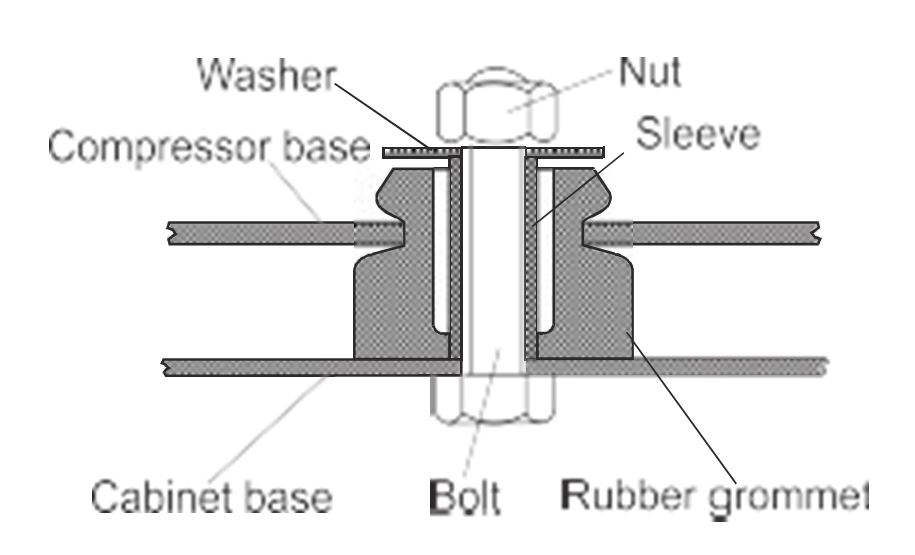

Bolt Joint
