SPORLAN C-305-S FILTER DRIER 5/8"

SKU
AXXX-DRY02
TTD 607.00
In stock

Sporlan Logo

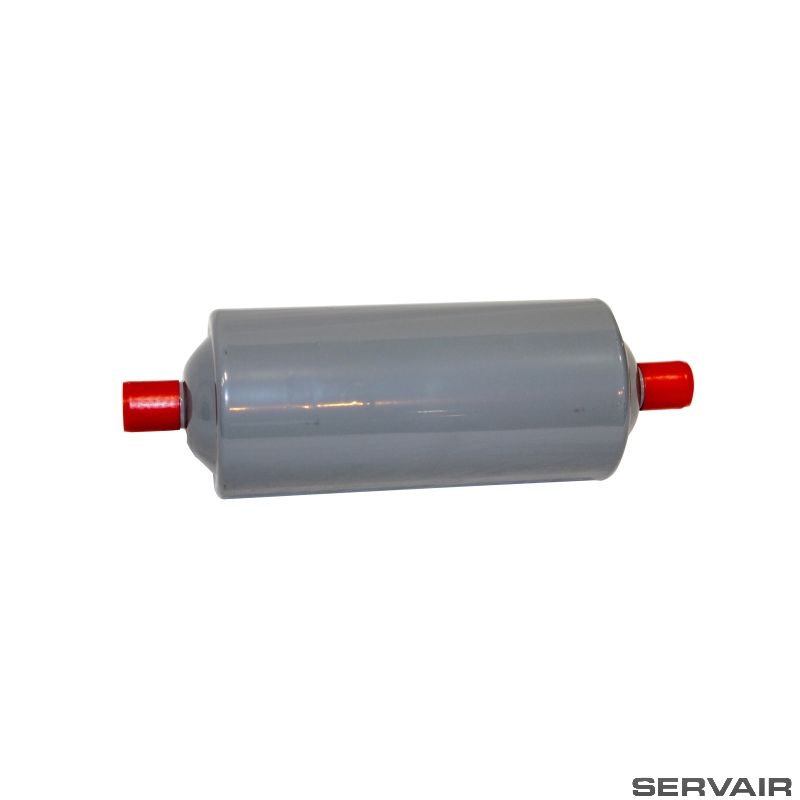

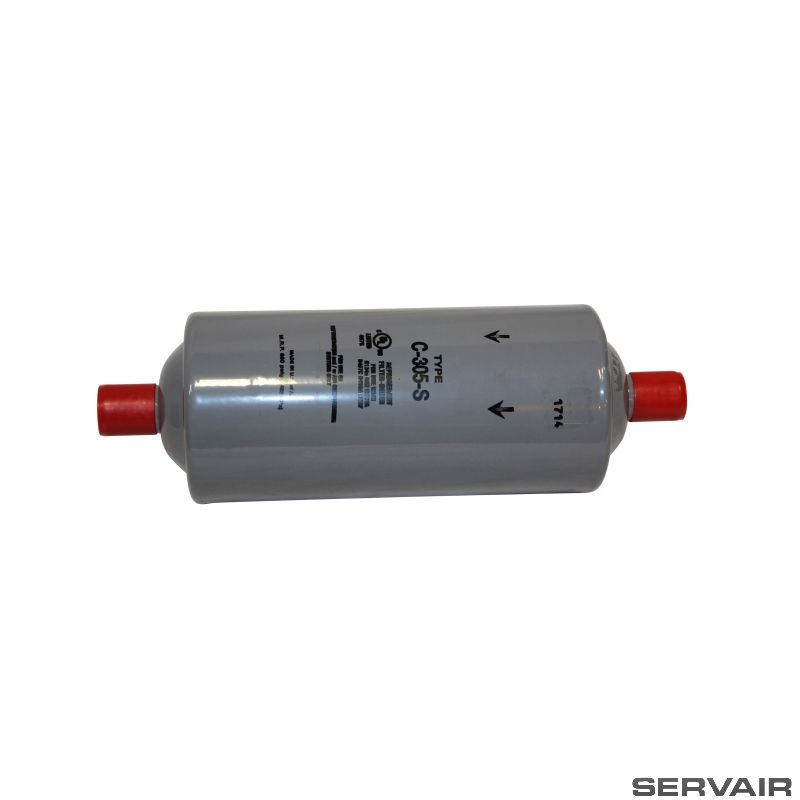

Sporlan 5/8" Sweat (ODF) Liquid Line Filter Drier, 30 CU IN

Features & Benefits

  • Complete Contaminant Control to Protect and Extend System Life and Ensure System Reliability
  • High Performance Desiccant Package Provide High Water Capacity and Acid Capacity
  • Porous Molded Core Provide Excellent Filtration of Solid Debris for TEV and Compressor Protection
  • Model Available with Activated Charcoal for Use During System Clean-Up
  • RoHS Compliant


Parker Hannifin Corp. (Sporlan) CATCH-ALL® 5/8" x 5/8", ODF Soldered x ODF Soldered, 9.22" L, 30 Cu Inch Desiccant, 650 PSI, 2 to 10 Ton Capacity, 53 Sq Inch, Sealed, Liquid Line, Filter Drier for Refrigerant and Air Conditioning System

The Liquid Line Sealed Model Filter-driers - Sporlan Catch-All® Series provide unparalleled control of the most harmful contaminants in HVAC&R systems. Moisture, acids, and solid debris are effectively captured to ensure the long life, efficiency, and capacity of today’s high performance air-conditioning and refrigeration systems. With multiple sizes and fitting configurations, it is easy to find the right model for systems up to 20 tons.

Features & Benefits

  • Complete Contaminant Control to Protect and Extend System Life and Ensure System Reliability
  • High Performance Desiccant Package Provide High Water Capacity and Acid Capacity
  • Porous Molded Core Provide Excellent Filtration of Solid Debris for TEV and Compressor Protection
  • Model Available with Activated Charcoal for Use During System Clean-Up
  • RoHS Compliant

Specifications

  • Size: 3 Inch Diameter x 9.22 Inch Length
  • Used On Item: Refrigerant/Air Conditioning System
  • Applicable Standard: UL (Canada and US), REACH, ATEX, PED
  • RoHS Compliant
  • Type Sealed
  • Refrigerant Type R134A/R22/R404A/R507/R407A/R407C/R407F/R410A
  • End Connection 5/8 Inch ODF Soldered x 5/8 Inch ODF Soldered
  • Volume of Desiccant 30 Cubic Inch
  • Pressure Rating 650 PSI
  • Flow Capacity 2 to 10 Ton
  • Filter Area 53 Square Inch
  • Application Residential and Commercial HVAC, Food Service, Specialty and Ultra-Low Temperature, Transportation

Specifications

  • BrandSporlan
  • BurnoutNo
  • Connection Material FinishCopper
  • Connection TypeSweat (ODF)
  • Core Material & FinishSolid Core
  • Effective Volume Desiccant30
  • Line TypeLiquid
  • Nominal Connection Size5/8"
  • RefrigerantHC, HCFC, HFC, HFO
