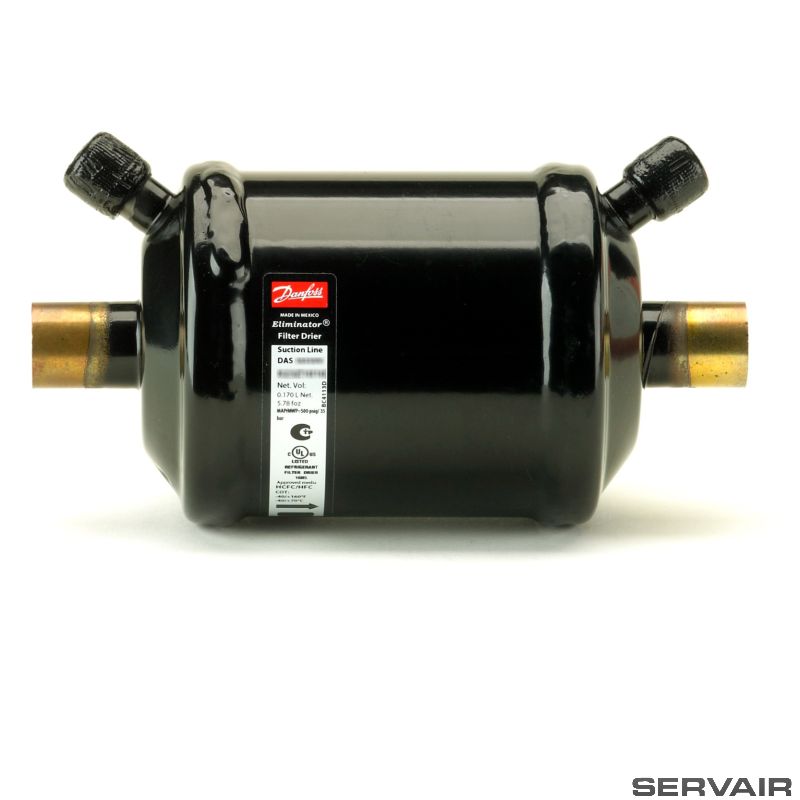

DANFOSS 023Z1010 HERMETIC BURN-OUT FILTER DRIER
Danfoss Hermetic Burn-Out Filter Drier 023Z1010
Product description: Suction line filter drier
Max. Working Pressure [bar]: 35.0
Connection material: Copper
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
0.94 Kg |
|
Net weight |
0.861 Kg |
|
Volume |
1.513 Liter |
|
EAN |
5702428160438 |
|
Acid capacity [g] |
8.7 g |
|
Acid capacity [oz] |
0.307 oz |
|
Activated alum/Molec sieve [%] |
70% / 30% |
|
Activated alumina [%] |
70 % |
|
Approval |
UL |
|
Body material |
Steel |
|
Braket |
No |
|
Brand |
ELIMINATOR |
|
China RoHS compliance |
Yes exceed limitations |
|
Connection material |
Copper |
|
Connection notes |
Schraeder Inlet / Outlet |
|
Core |
Solid core |
|
Core Size code |
16 cu.in. |
|
Core type |
Solid core |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(a) |
|
Filter application |
Compressor Burnout |
|
Flow capacity [kW] |
R134a: 9.5 |
|
Flow capacity [TR] |
R134a: 2.7 |
|
Flow direction indicator |
Label printed 1-way arrow |
|
FlowCap Cond (ARI 730-05)[IMP] |
Delta p=3PSI |
|
FlowCap Cond (ARI 730-05)[SI] |
Delta p=0.21bar |
|
Fluid Group |
2 |
|
In scope of WEEE and contain batteries |
No |
|
Inlet 1 connection size [in] |
5/8 in |
|
Inlet connection type |
Solder, ODF |
|
Lubricants compatibility |
Oilfree applications |
|
Max. Working Pressure [bar] |
35 bar |
|
Max. Working Pressure [psig] |
508 psig |
|
Molecular sieve [%] |
30 % |
|
Net volume [foz US] |
7.63 Fluid Ounce US |
|
Net volume [l] |
0.226 L |
|
Oil free refrigerants |
R1234ze(E) |
|
Outlet 1 connection size [in] |
5/8 in |
|
Outlet connection type |
Solder, ODF |
|
Packing format |
Multi pack |
|
PED category |
Art. 4, par. 3 |
|
Product accessories |
No |
|
Product description |
Suction line filter drier |
|
Product group |
Filter driers |
|
Product Name Description |
Hermetic burn-out filter drier |
|
Quantity per packing format |
12 pc |
|
REACH Candidate List substances |
No |
|
Refrigerants |
R1234yf |
|
Serviceable |
No |
|
Shell volume [foz US] |
11.97 Fluid Ounce US |
|
Shell volume [l] |
0.35 L |
|
Solid core surface [cm2] |
183 cm² |
|
Solid core surface [in2] |
28.34 in² |
|
Solid core volume [cm3] |
128 cm³ |
|
Solid core volume [in3] |
7.84 in³ |
|
Temperature range [°C] [max] |
70 °C |
|
Temperature range [°C] [min] |
-40 °C |
|
Temperature range [°F] [max] |
160 °F |
|
Temperature range [°F] [min] |
-40 °F |
|
Type |
DAS |
|
Type designation |
DAS 165SVV |
|
UK RoHS compliance |
Out of scope |
|
UL approval file name |
SA6398 |
|
UL approved refrigerants |
R125 |
| Brand | Danfoss |
|---|
