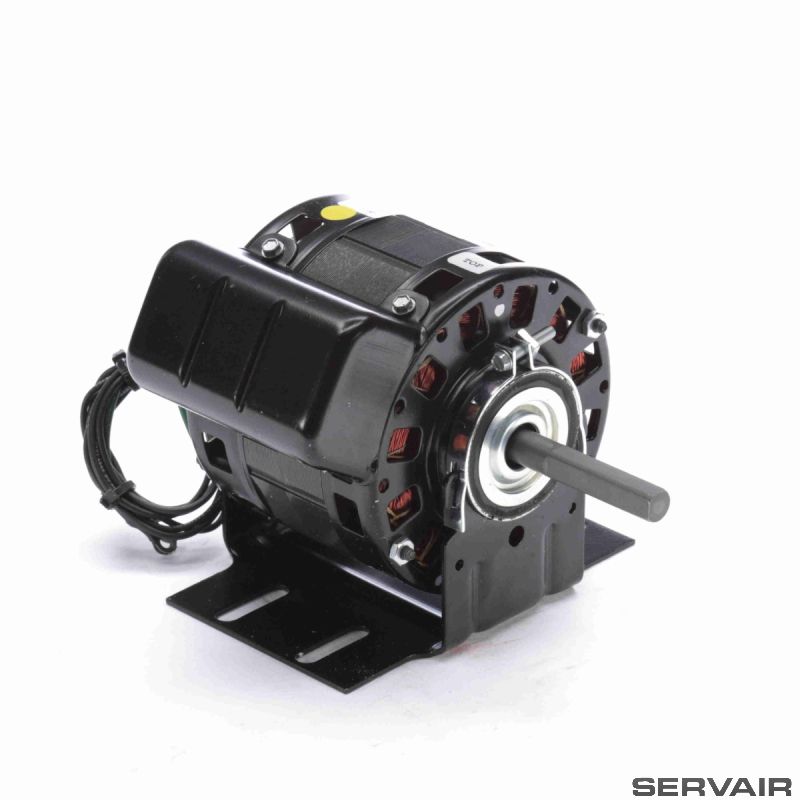

CENTURY OCP0250 REFRIGERATION MOTOR

SKU
RFAO-MTR01-01
TTD 2,054.00
Out of stock

Century Logo

Century Refrigeration Motor
Speed: 1400/1625 RPM, 1 Speed
Horsepower: 1/4HP
Power Supply: 230V, 1Ph, 60/50 Hz
Part#: OCP0250







Nameplate Specifications

Phase:

1

Output HP:

1/4 Hp

Output KW:

0.19 kW

Voltage:

230 V

Speed:

1400/1625 rpm

Service Factor:

1

Frame:

42Y

Enclosure:

Open Air Over

Thermal Protection:

Automatic

Ambient Temperature:

40 °C

Frequency:

50 Hz

Current:

1.5 A

Duty:

Air Over

Insulation Class:

B

UL:

Recognized

CSA:

Y

CE:

N

Number of Speeds:

1

Technical Specifications

Electrical Type:

Permanent Split Capacitor

Starting Method:

Across The Line

Poles:

4

Rotation:

Clockwise Lead End

Mounting:

Resilient Base

Motor Orientation:

Horizontal

Drive End Bearing:

Sleeve

Opp Drive End Bearing:

Sleeve

Frame Material:

Na

Shaft Type:

Double Flat

Overall Length:

6.88 in

Shaft Diameter:

0.500 in

Shaft Extension:

3 in





We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.

More Information

More Information
Brand Century
