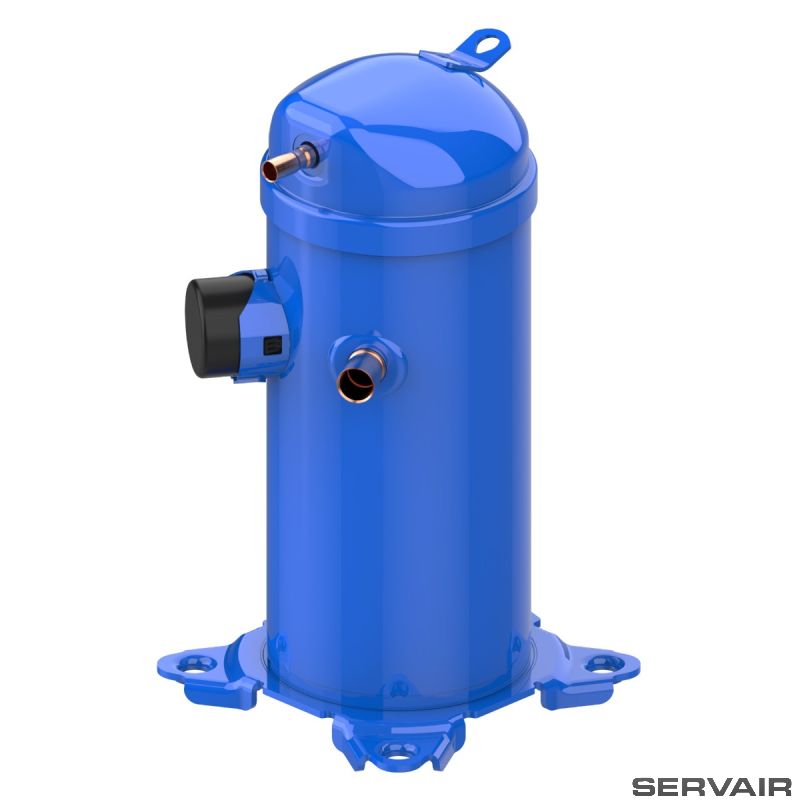

DANFOSS HRH056U2LP6 SCROLL COMPRESSOR
Danfoss Scroll Compressor HRH056U2LP6
Refrigerants: R410A
Segment usage: Air conditioning
Compressor power supply [V]: 200-220/3/50 208-230/3/60
Packing format: Industrial pack
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
41.67 Kg |
|
Net weight |
39 Kg |
|
Volume |
0.06 Cubic.mtr |
|
EAN |
5702424061968 |
|
Approval |
CE |
|
Brand technique |
Scroll compressor |
|
Capacity control |
Fixed speed |
|
China RoHS compliance |
Out of scope |
|
Colour |
Blue |
|
Compressor power supply [V] |
200-220/3/50 208-230/3/60 |
|
Configuration code |
Single |
|
Connection type |
Brazed |
|
Description |
HRH056U2 |
|
Diameter [mm] |
184 mm |
|
Discharge connection height [mm] |
422 mm |
|
Discharge connection pipe size [in] |
1/2 in |
|
Discharge connection size [in] |
1/2 in |
|
Drawing number |
0XR6002B-2 |
|
Economizer |
No |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
|
Family |
HRH |
|
Fitting standard |
ODF |
|
Frequency [Hz] |
50/60 |
|
Gauge port HP |
None |
|
Gauge port LP |
None |
|
Gaz equalization |
None |
|
Glass mounting |
None |
|
High value of nominal voltage at 50Hz [V] |
220 V |
|
High value of nominal voltage at 60Hz [V] |
230 V |
|
High value of voltage range at 50Hz [V] |
242 V |
|
High value of voltage range at 60Hz [V] |
253 V |
|
In scope of WEEE and contain batteries |
No |
|
IP protection class |
IP22 |
|
Length [mm] |
239 mm |
|
Low value of nominal voltage at 50Hz [V] |
200 V |
|
Low value of nominal voltage at 60Hz [V] |
208 V |
|
Low value of voltage range at 50Hz [V] |
180 V |
|
Low value of voltage range at 60Hz [V] |
187 V |
|
LRA |
120 A |
|
Max pressure (PS) - high side |
46.1 bar |
|
Max pressure (PS) - low side |
31.1 bar |
|
MCC |
28 A |
|
Model number |
HRH056U2LP6 |
|
Motor protection |
Internal overload protector |
|
Network power supply [V/Ph/Hz] |
200-230/3/50 208-230/3/60 |
|
Oil charge [L] |
1.57 L |
|
Oil drain |
None |
|
Oil equalization |
None |
|
Oil reference |
320HV |
|
Oil type |
PVE |
|
Packing format |
Industrial pack |
|
Packing quantity |
12 |
|
Phase |
3 |
|
Power connections |
Spade |
|
Product group |
Hermetic compressors |
|
Product Name Description |
Scroll compressor HRH |
|
Refrigerant charge [kg] [Max] |
5.44 kg |
|
Refrigerants |
R410A |
|
RLA |
17.3 A |
|
Rotational speed at 50Hz [rpm] |
2900 rpm |
|
Rotational speed at 60Hz [rpm] |
3500 rpm |
|
Segment usage |
Air conditioning |
|
Suction connection height [mm] |
280 mm |
|
Suction connection material |
- |
|
Suction connection pipe size [in] |
7/8 in |
|
Suction connection size [in] |
7/8 in |
|
Swept volume [cm3] |
54.08 cm³ |
|
Technology |
Scroll |
|
Total height [mm] |
455 mm |
|
Type |
HRH056 |
|
UK RoHS compliance |
Out of scope |
|
Viscosity [cP] |
68 cP |
|
Width [mm] |
239 mm |
|
Winding resistance 1-2 [Ohm] |
0.6 |
|
Winding resistance 1-3 [Ohm] |
0.6 |
|
Winding resistance 2-3 [Ohm] |
0.61 |
