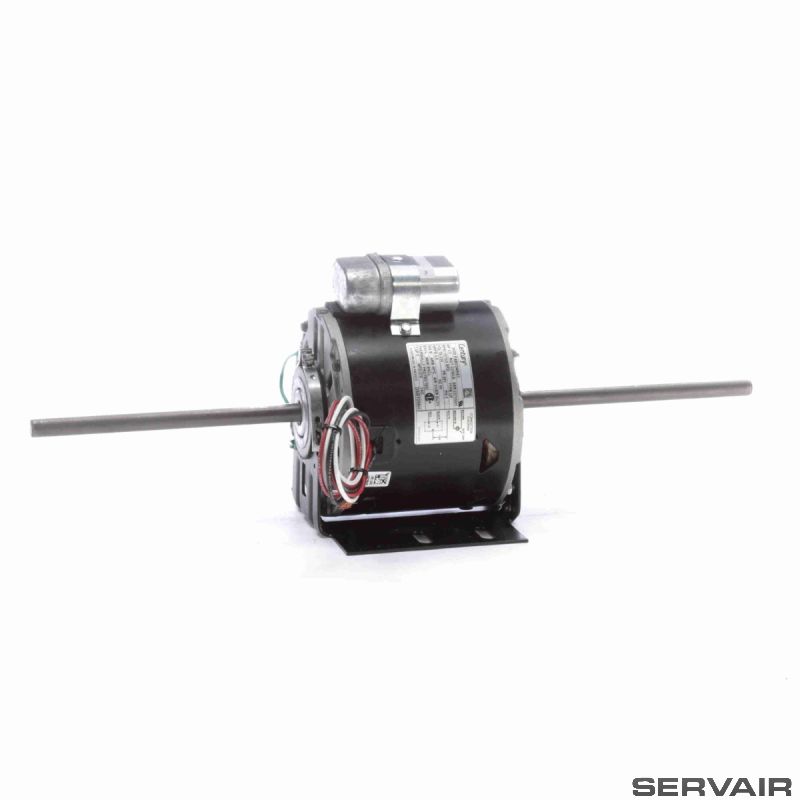

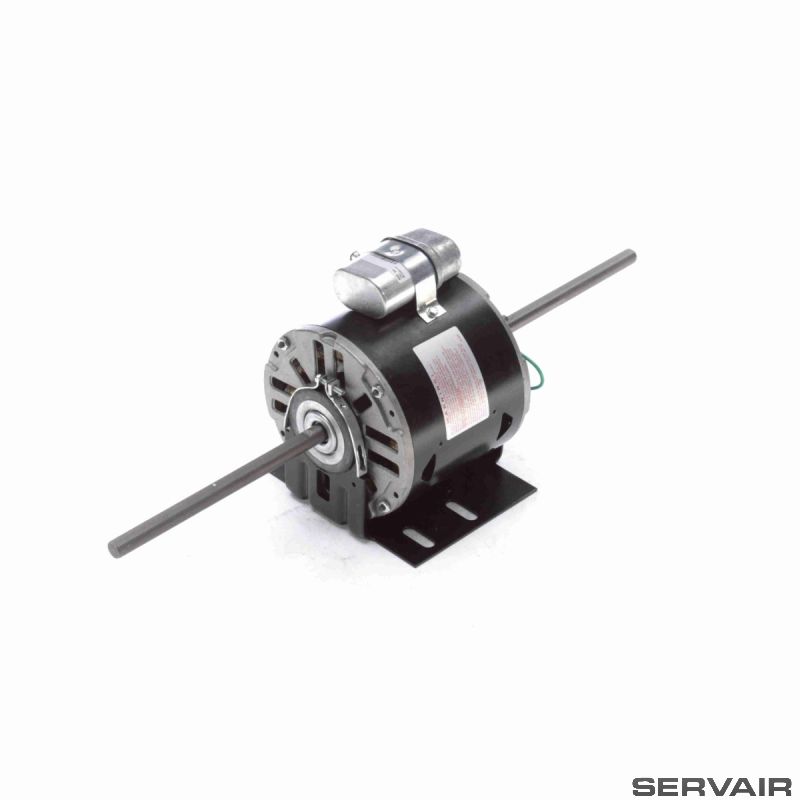

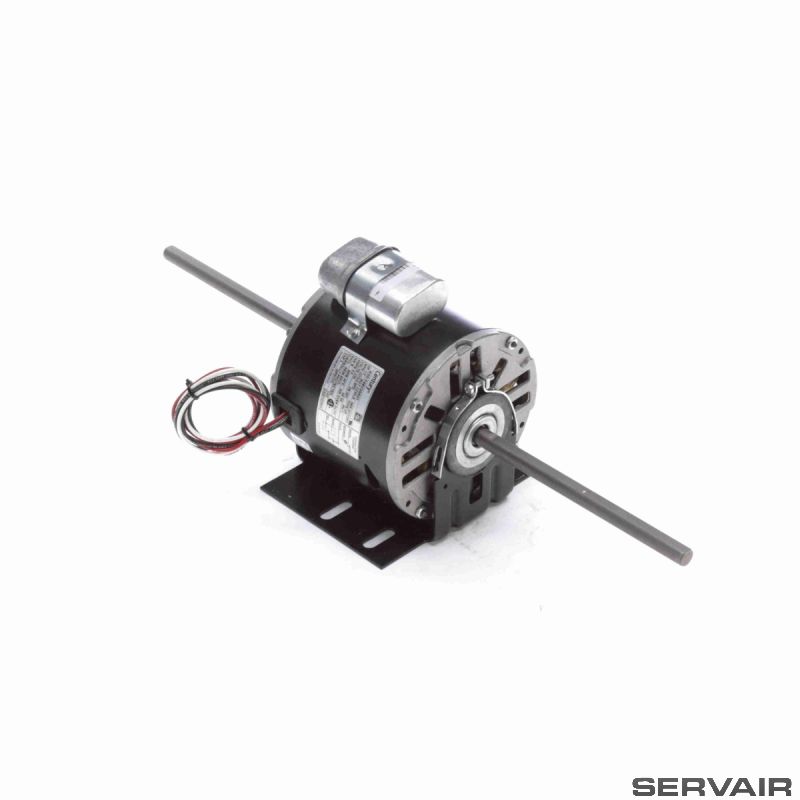

CENTURY DSB1056H EVAPORATOR FAN MOTOR
Century Fan Coil & Air Conditioner Motor
Speed: 1075 RPM, 2 Speed
Horsepower: 1/2HP
Power Supply: 230V, 1Ph, 60 Hz
Part#: DSB1056H
- Fan Coil - Room Air Conditioner - Blower Motor
- 5.6" Diameter - 48 Frame
- Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
- Thermally Protected
- Open Shaft and Lead End End-Frame, Semi-Enclosed Shell, Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- 1/2" Diameter Double Shaft with Flat
- 22" Leads
- Resilient Base
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
Nameplate Specifications
|
Phase: |
1 |
Output HP: |
1/2 Hp |
|
Output KW: |
0.37 kW |
Voltage: |
230 V |
|
Speed: |
1075 rpm |
Service Factor: |
1 |
|
Frame: |
48Y |
Enclosure: |
Semi Enclosed |
|
Thermal Protection: |
Automatic |
Ambient Temperature: |
40 °C |
|
Frequency: |
60 Hz |
Current: |
4.0 A |
|
Duty: |
Air Over |
Insulation Class: |
B |
|
UL: |
Recognized |
CSA: |
Y |
|
CE: |
N |
Number of Speeds: |
2 |
Technical Specifications
|
Electrical Type: |
Permanent Split Capacitor |
Starting Method: |
Across The Line |
|
Poles: |
6 |
Rotation: |
Counterclockwise Lead End |
|
Mounting: |
Resilient Base |
Motor Orientation: |
Horizontal |
|
Drive End Bearing: |
Sleeve |
Opp Drive End Bearing: |
Sleeve |
|
Frame Material: |
Rolled Steel |
Shaft Type: |
Flat |
|
Overall Length: |
19.86 in |
Frame Length: |
4.38 in |
|
Shaft Diameter: |
0.500 in |
Shaft Extension: |
7.5X.5X7.5 in |
| Brand | Century |
|---|
