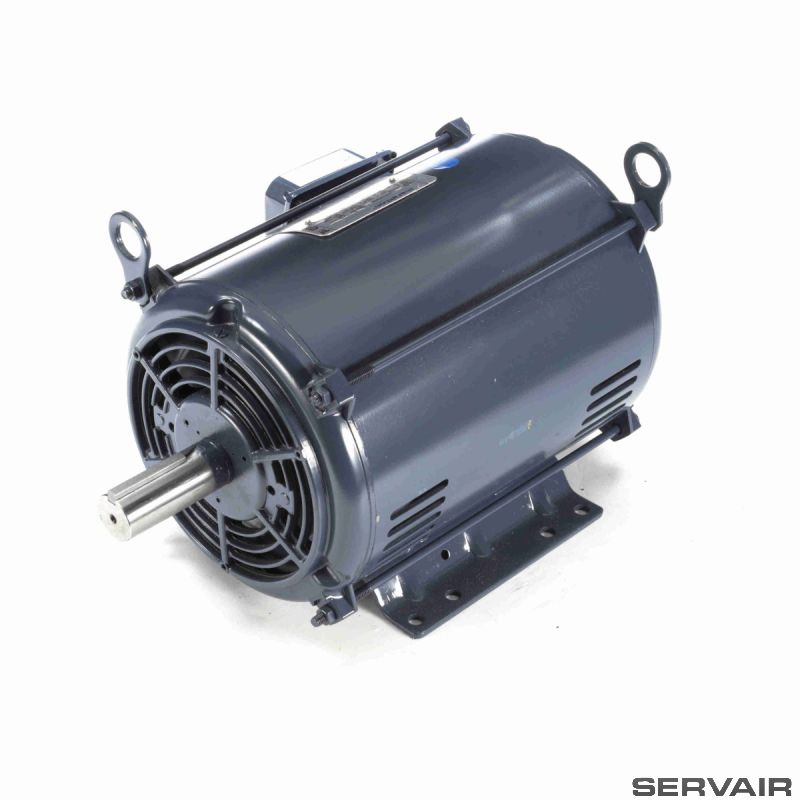

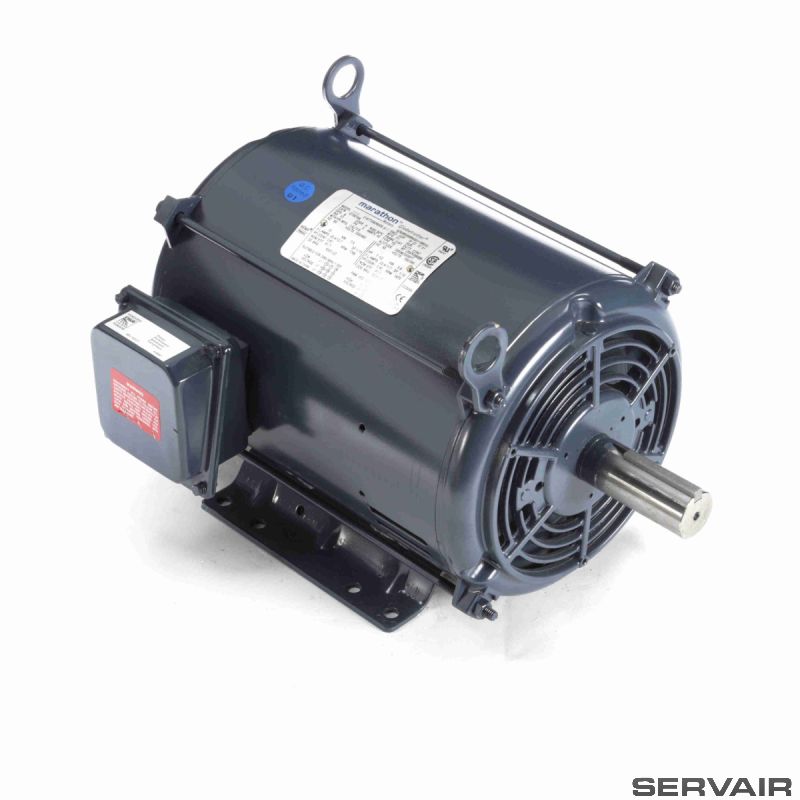

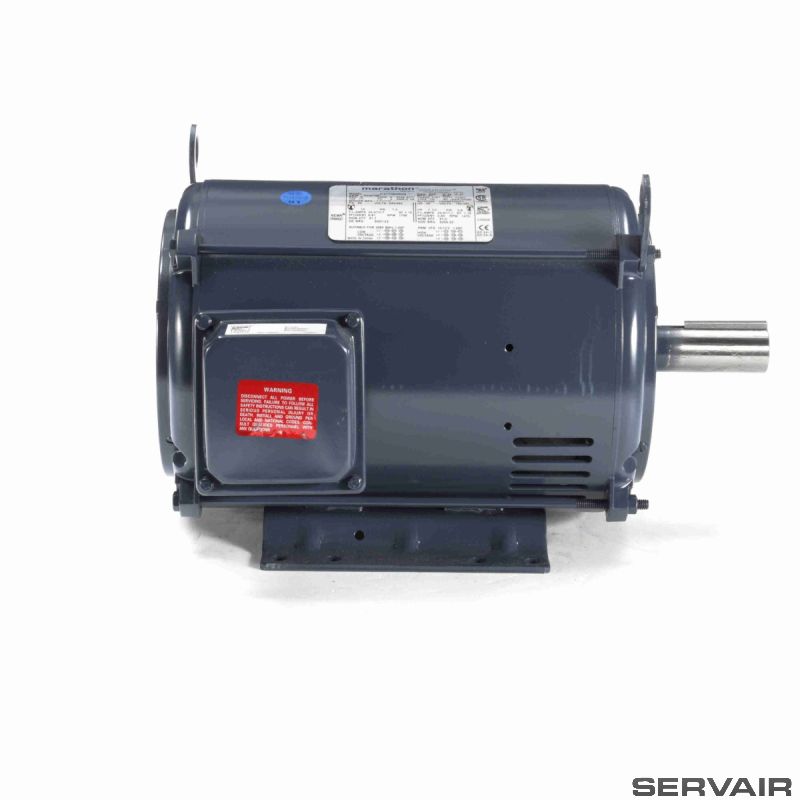

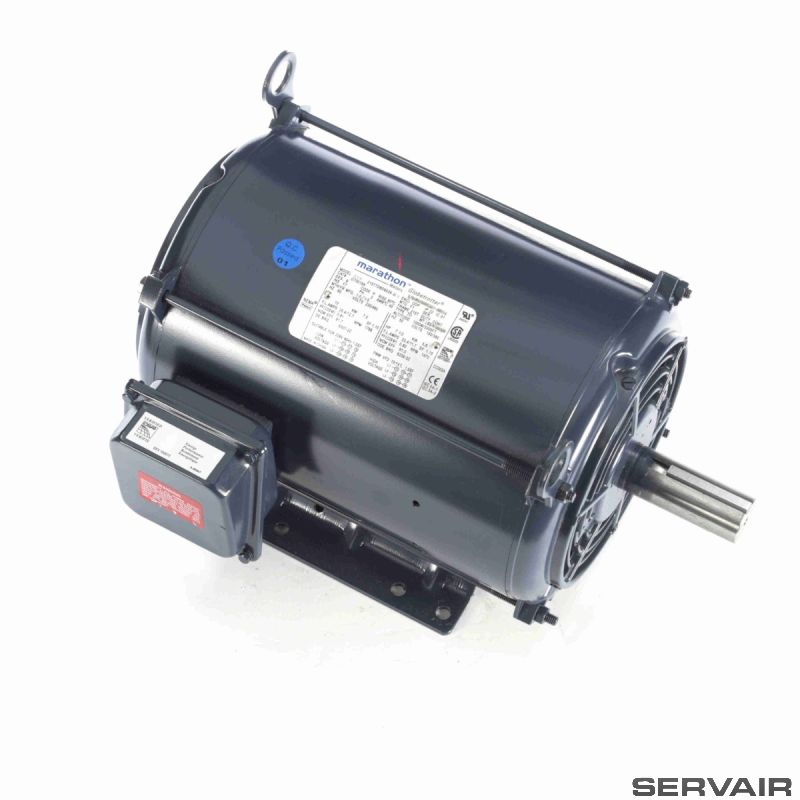

CENTURY 215TTDBD6026 GENERAL PURPOSE MOTOR
Globetrotter® General Purpose Motor
Speed: 1500, 1800 RPM
Horsepower: 7.5, 10 HP
Power Supply: 230/460V &190/380 V, 3Ph, 50/60 Hz
Part#: 215TTDBD6026
- Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007
- 182T-365T models steel frame, 404T-449T models cast iron frame
- Inverter Duty 20:1 Variable Torque
- Class F Insulation
- Standard F1, reversible to F2 assembly. Dual frame mounting holes.
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
Nameplate Specifications
|
Phase: |
3 |
Output HP: |
10 & 7.50 Hp |
|
Output KW: |
7.5 & 5.6 kW |
Voltage: |
230/460 & 190/380 V |
|
Speed: |
1768 & 1470 rpm |
Service Factor: |
1.15 & 1.15 |
|
Frame: |
215T |
Enclosure: |
Drip Proof |
|
Thermal Protection: |
No Protection |
Efficiency: |
91.7 & 91 % |
|
Ambient Temperature: |
40 °C |
Frequency: |
60 & 50 Hz |
|
Current: |
25.4/12.7 & 23.4/11.7 A |
Power Factor: |
80.1 |
|
Duty: |
Continuous |
Insulation Class: |
F |
|
Design Code: |
B |
KVA Code: |
H |
|
Drive End Bearing Size: |
6307 |
Opp Drive End Bearing Size: |
6206 |
|
UL: |
Recognized |
CSA: |
Y |
|
CE: |
Y |
IP Code: |
22 |
|
Number of Speeds: |
1 |
Technical Specifications
|
Electrical Type: |
Squirrel Cage Inverter Rated |
Starting Method: |
Line Or Inverter |
|
Poles: |
4 |
Rotation: |
Reversible |
|
Resistance Main: |
1.217 Ohms |
Mounting: |
Rigid Base |
|
Motor Orientation: |
Horizontal |
Drive End Bearing: |
Ball |
|
Opp Drive End Bearing: |
Ball |
Frame Material: |
Rolled Steel |
|
Shaft Type: |
T |
Overall Length: |
17.52 in |
|
Shaft Diameter: |
1.375 in |
Shaft Extension: |
3.38 in |
|
Assembly/Box Mounting: |
F1/F2 CAPABLE |
Inverter Load: |
VARIABLE 10:1 |
Speed Characteristics
|
Curvepoint |
Current (Amps) |
Current (%) |
Torque (ft-lbs) |
Torque (%) |
Speed (RPM) |
Rated Output (KW) |
Power Factor (%) |
Rated Output (Hp) |
|
Pull-Up |
73.00 |
575.0 |
42.00 |
141.0 |
900 |
0.00 |
0.0 |
10.00 |
|
Full Load |
12.70 |
100.0 |
29.80 |
100.0 |
1,768 |
0.00 |
81.0 |
10.00 |
|
1/3 |
76.00 |
598.0 |
50.00 |
168.0 |
600 |
0.00 |
0.0 |
10.00 |
|
2/3 |
66.00 |
520.0 |
63.00 |
211.0 |
1,200 |
0.00 |
0.0 |
10.00 |
|
Locked-Rotor |
79.00 |
622.0 |
65.00 |
218.0 |
0 |
0.00 |
45.0 |
10.00 |
|
No Load |
5.80 |
46.0 |
0.00 |
0.0 |
1,800 |
0.00 |
5.5 |
10.00 |
|
Break-Down |
44.00 |
346.0 |
82.00 |
275.0 |
1,578 |
0.00 |
68.0 |
10.00 |
Load Characteristics
|
% of Rated Load |
0 % |
25 % |
50 % |
75 % |
100 % |
115 % |
125 % |
|
Current (Amps) |
5.80 |
6.50 |
8.00 |
10.20 |
12.70 |
14.50 |
15.70 |
|
Rated Output (KW) |
0.50 |
2.20 |
4.10 |
6.10 |
8.10 |
9.50 |
10.30 |
|
Efficiency (%) |
0.0 |
84.5 |
90.9 |
91.9 |
91.7 |
90.4 |
90.7 |
|
Power Factor (%) |
5.5 |
43.8 |
65.1 |
75.8 |
80.1 |
82.2 |
82.3 |
|
Speed (RPM) |
1,800 |
1,792 |
1,785 |
1,778 |
1,768 |
1,762 |
1,758 |
|
Temp. Rise @ FL |
0.0 |
0.0 |
0.0 |
0.0 |
65.0 |
85.0 |
105.0 |
|
Torque (ft-lbs) |
0.00 |
7.30 |
14.70 |
22.20 |
29.80 |
34.30 |
37.40 |
| Brand | Century |
|---|
