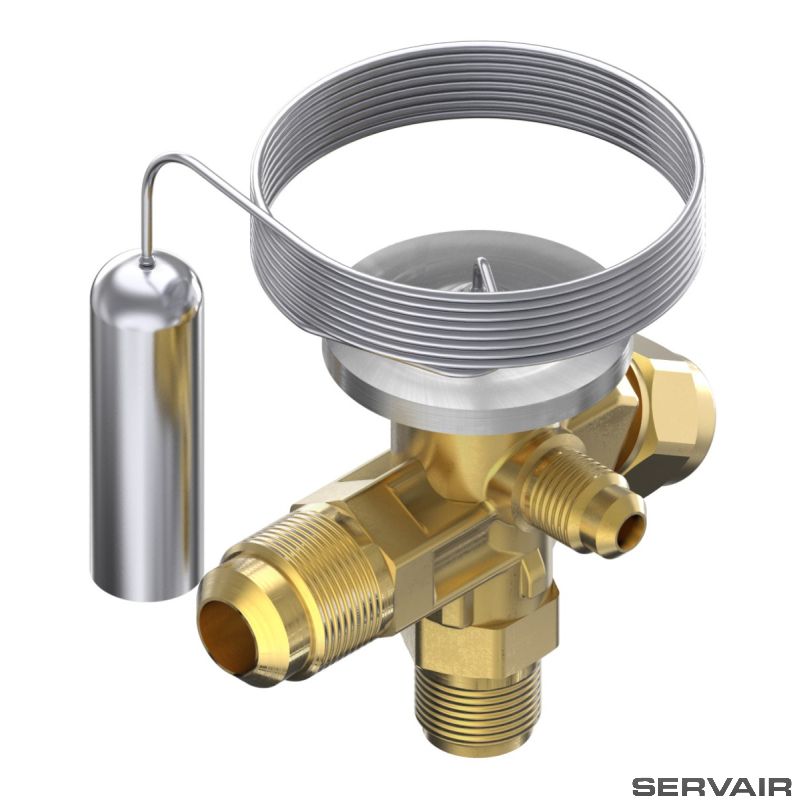

DANFOSS 068Z3209 REFRIGERATION TXV
Danfoss Refrigeration TXV 068Z3209
Temperature range [°C]: -40 - 10
Pressure equalization: Externally equalized
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
0.316 Kilogram |
|
Net weight |
0.294 Kilogram |
|
Volume |
0.489 Liter |
|
EAN |
5702422117261 |
|
Approval |
EAC |
|
Body material |
Brass |
|
Capillary tube length [in] |
59 in |
|
Capillary tube length [mm] |
1500 mm |
|
China RoHS compliance |
Yes exceed limitations |
|
Connection material |
Brass |
|
Direction |
Angleway |
|
Equalization connection type |
Flare |
|
Equalization size [in] |
1/4 in |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(a) |
|
Flow direction |
Bi-flow with orifice 01-05 |
|
Flow direction indicator |
Embossed 1-way arrow |
|
Fluid Group |
2 |
|
Identical product |
068Z3238 |
|
In scope of WEEE and contain batteries |
No |
|
Inlet connection type |
Flare |
|
Inlet size [in] |
3/8 in |
|
Max. Working Pressure [bar] |
34 bar |
|
Max. Working Pressure [psig] |
500 psig |
|
Outlet connection type |
Flare |
|
Outlet size [in] |
1/2 in |
|
Packing format |
Multi pack |
|
Parts included |
Bulb strap |
|
Parts Program name |
T2/TE2 |
|
PED category |
Art. 4, par. 3 |
|
Pressure equalization |
Externally equalized |
|
Product accessories |
TXV accessories |
|
Product group |
Expansion valves |
|
Product Name Description |
Thermostatic expansion valve |
|
Quantity per packing format |
20 pc |
|
Rated cap. cond. Range N [IMP] |
OS=10.8 ºF |
|
Rated cap. cond. Range N [SI] |
OS=6K |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R22/R407C |
|
SCIP dossier no. |
c164ed45-f10d-4d73-9eae-355ccb479f4b |
|
SCIP dossier product name |
T2 /TE2 - Thermostatic Expansion Valve |
|
Serviceable |
TXV spare parts |
|
Static Superheat (SS) [°C] |
4 °C |
|
Static Superheat (SS) [°F] |
7.2 °F |
|
Superheat setting |
Adjustable |
|
Temperature range [°C] [max] |
10 °C |
|
Temperature range [°C] [min] |
-40 °C |
|
Temperature range [°F] [max] |
50 °F |
|
Temperature range [°F] [min] |
-40 °F |
|
Type |
TE 2 |
|
UA address |
UA_2L.png |
|
UK RoHS compliance |
Out of scope |
