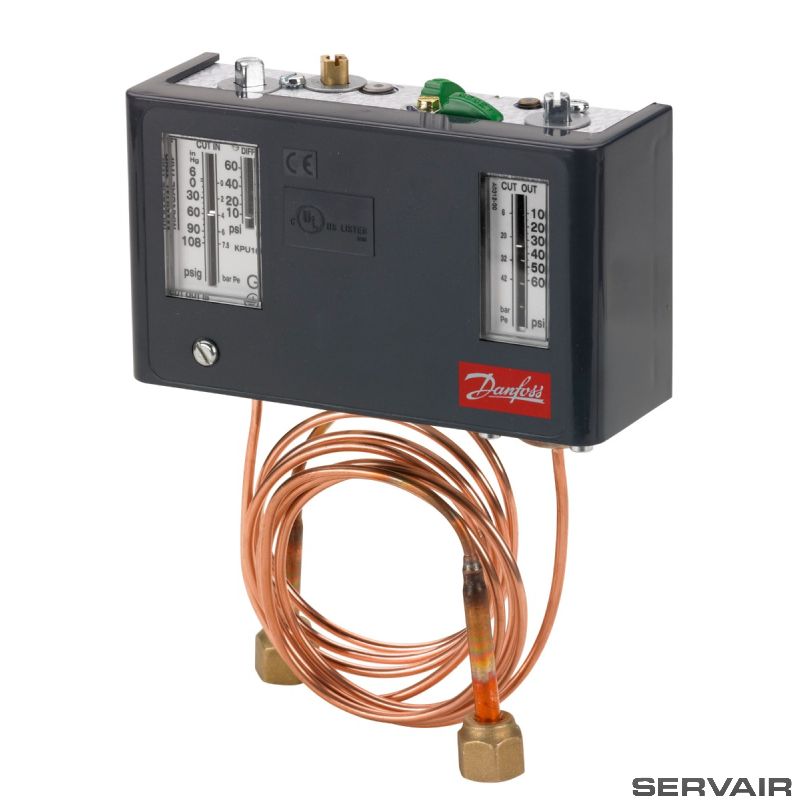

DANFOSS 060-5254 PRESSURE SWITCH
Danfoss Pressure Switch 060-5254
Regulation left side [bar]Pe: -0.20 - 7.50
Regulation right side [bar]Pe: 8.0 - 42.0
Differential left side [bar]: 0.70 - 4.00
Differential right side [bar]: 4.0
Contact function: SPDT+SPST(NO)
Reset function, left side: Min convertible
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
1.029 Kilogram |
|
Net weight |
0.983 Kilogram |
|
Volume |
1.028 Liter |
|
EAN |
5702428064002 |
|
Amb. Temp. Note |
80 °C/176 °F for max 120 min |
|
Ambient temperature range [°C] [max] |
50 °C |
|
Ambient temperature range [°C] [min] |
-40 °C |
|
Ambient temperature range [°F] [max] |
122 °F |
|
Ambient temperature range [°F] [min] |
-40 °F |
|
Application note |
Not applicable for liquid line |
|
Approval |
CE |
|
Cap. tube length fraction [in] |
36 in |
|
Capillary tube length [mm] |
900 mm |
|
CE evaluated |
Yes |
|
China RoHS compliance |
Out of scope |
|
Contact function |
SPDT+SPST(NO) |
|
Contact rating |
144 A, 240 V AC |
|
Differential left side [bar] [max] |
4 bar |
|
Differential left side [bar] [min] |
0.7 bar |
|
Differential left side [psi] [max] |
60 psi |
|
Differential left side [psi] [min] |
10 psi |
|
Differential right side [bar] |
4 bar |
|
Differential right side [psi] |
60 psi |
|
Electrical conn. comments |
for ½ in male pipe thread |
|
Electrical connection |
Hole |
|
Electrical connection size |
7/8 in |
|
EN 60947 electrical properties |
Insulation: 400V |
|
EN 60947 wiring properties |
Flex, ferrules: 0.5-1.5 mm2 |
|
Enclosure rating IP |
IP30 |
|
Enclosure rating Nema (~) |
1 |
|
EU RoHS compliance |
Yes |
|
EU RoHS exemption clause |
No |
|
In scope of WEEE and contain batteries |
No |
|
Lubricants compatibility |
Oilfree applications |
|
MWP left side [bar] Pe |
17 bar |
|
MWP left side [psig] Pe |
250 psig |
|
MWP right side [bar] Pe |
46.5 bar |
|
MWP right side [psig] Pe |
675 psig |
|
Oil free refrigerants |
R134a |
|
Other RoHS documentation |
Saudi Arabia RoHS |
|
Packing format |
Multi pack |
|
Pressure connection size |
1/4 |
|
Pressure connection standard |
DIN 8912 |
|
Pressure connection type |
Flare nut |
|
Pressure Male/Female |
Female |
|
Pressure sensing element |
Bellows |
|
Product accessories |
Switches accessories |
|
Product description |
Dual Pressure Control |
|
Product group |
Switches and thermostats |
|
Product Name Description |
Pressure switch |
|
Quantity per packing format |
10 pc |
|
REACH Candidate List substances |
No |
|
Refrigerants |
R113 |
|
Regulation left side [bar]Pe [max] |
7.5 bar |
|
Regulation left side [bar]Pe [min] |
-0.2 bar |
|
Regulation left side range Pe |
6 inHg - 108 psig |
|
Regulation right side [bar]Pe [max] |
42 bar |
|
Regulation right side [bar]Pe [min] |
8 bar |
|
Regulation right side [psig]Pe [max] |
600 psig |
|
Regulation right side [psig]Pe [min] |
100 psig |
|
Reset function, left side |
Min convertible |
|
Reset function, right side |
Max convertible |
|
Serviceable |
No |
|
Type |
KPU16B |
|
UK RoHS compliance |
Out of scope |
|
UL approval file name |
E31024 |
|
UL approved refrigerants |
R113 |
|
UL evaluated |
Yes |
