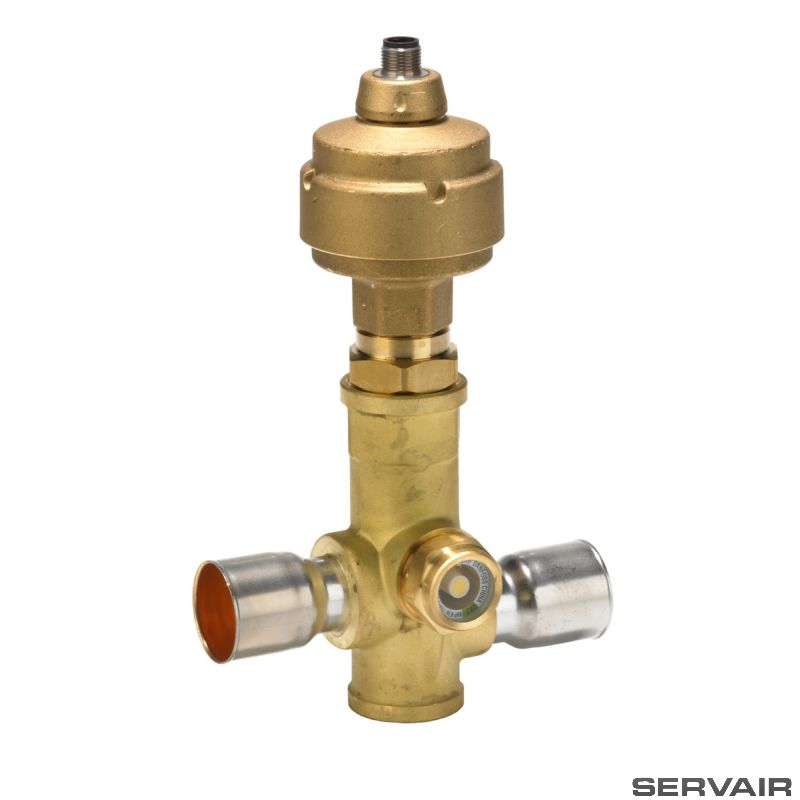

DANFOSS 034G0507 EXPANSION VALVE
Danfoss Expansion Valve 034G0507
Inlet connection type: Solder ODF
Inlet size [in]: 1 1/8 in
Outlet size [in]: 1 1/8 in
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
2.005 Kilogram |
|
Net weight |
1.699 Kilogram |
|
Volume |
6.248 Liter |
|
EAN |
5702428827287 |
|
Ambient temperature range [°C] [max] |
60 °C |
|
Ambient temperature range [°C] [min] |
-40 °C |
|
Ambient temperature range [°F] [max] |
140 °F |
|
Ambient temperature range [°F] [min] |
-40 °F |
|
Approval |
CE |
|
Balanced port [Yes/No] |
Yes |
|
China RoHS compliance |
Out of scope |
|
Compatible Danfoss controllers |
EKE 1A |
|
Connection material |
Bi-metal: Steel/copper |
|
Direction |
Straightway |
|
Electrical conn. Male/Female |
Male |
|
Electrical connection |
M12 |
|
Electrical connection size |
4 pin |
|
Enclosure rating IP |
IP67 |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(c) |
|
Flow direction |
Bi-flow |
|
Fluid Group |
2 |
|
Full travel time speed [s] [max] |
23 s |
|
Full travel time speed [s] [min] |
11.5 s |
|
In scope of WEEE and contain batteries |
No |
|
Inlet connection type |
Solder ODF |
|
Inlet size [in] |
1 1/8 in |
|
Lubricants compatibility |
MO |
|
Manual operation option |
AST-G service driver |
|
Max allowed duty cycle [%] |
100 % |
|
Max tot PowerCons CurrDrive[W] |
1.3 W |
|
Max tot PowerCons VoltDrive[W] |
5.5 W |
|
Max. Working Pressure [bar] |
45.5 bar |
|
Max. Working Pressure [psig] |
660 psig |
|
MaxOPD [bar] |
33 bar |
|
MaxOPD [psi] |
478.6 psi |
|
MaxOPD reverse [bar] |
33 bar |
|
MaxOPD reverse [psi] |
478.6 psi |
|
Motor type |
Bi-polar |
|
Outlet connection type |
Solder ODF |
|
Outlet size [in] |
1 1/8 in |
|
Packing format |
Single pack |
|
PED category |
I |
|
Phase current (peak) [mA] |
141 mA |
|
Phase current (RMS) [mA] |
100 mA |
|
Phase inductance [µH] |
85000 μH |
|
Product accessories |
Stepper valve accessories |
|
Product group |
Expansion valves |
|
Product Name Description |
Electric expansion valve |
|
Quantity per packing format |
1 pc |
|
Rated cap. cond. note |
Full stroke open, normal flow |
|
Rated cap. conditions [IMP] |
tcond=90 °F |
|
Rated cap. conditions [SI] |
tcond=32 °C |
|
Rated cap. R404A/R507A [kW] |
300.5 kW |
|
Rated cap. R404A/R507A [TR] |
86.6 TR |
|
Rated capacity R134a [kW] |
316.5 kW |
|
Rated capacity R134a [TR] |
91.2 TR |
|
Rated capacity R22 [kW] |
400.4 kW |
|
Rated capacity R22 [TR] |
115.4 TR |
|
Rated capacity R407C [kW] |
447.8 kW |
|
Rated capacity R407C [TR] |
128.7 TR |
|
Rated capacity R410A [kW] |
488.4 kW |
|
Rated capacity R410A [TR] |
140.9 TR |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerant temperature [ºC] [max] |
65 °C |
|
Refrigerant temperature [ºC] [min] |
-40 °C |
|
Refrigerant temperature [ºF] [max] |
150 °F |
|
Refrigerant temperature [ºF] [min] |
-40 °F |
|
Refrigerants |
R1234ze(E) |
|
Resistance [kOhm] |
0.1 kOhm |
|
SCIP dossier no. |
c5625b77-53ec-4079-9d51-0ef83e9579dd |
|
SCIP dossier product name |
ETS 50-100 with sight glass |
|
Serviceable |
Stepper valve spare parts |
|
Sightglass |
Yes |
|
Step mode |
2-phase full step |
|
Total steps |
3530 (full steps) |
|
Type |
ETS 100 |
|
UK RoHS compliance |
Out of scope |
|
UL approved refrigerants |
R134a |
|
Voltage [V] DC [max] |
13.8 V |
|
Voltage [V] DC [min] |
11.5 V |
