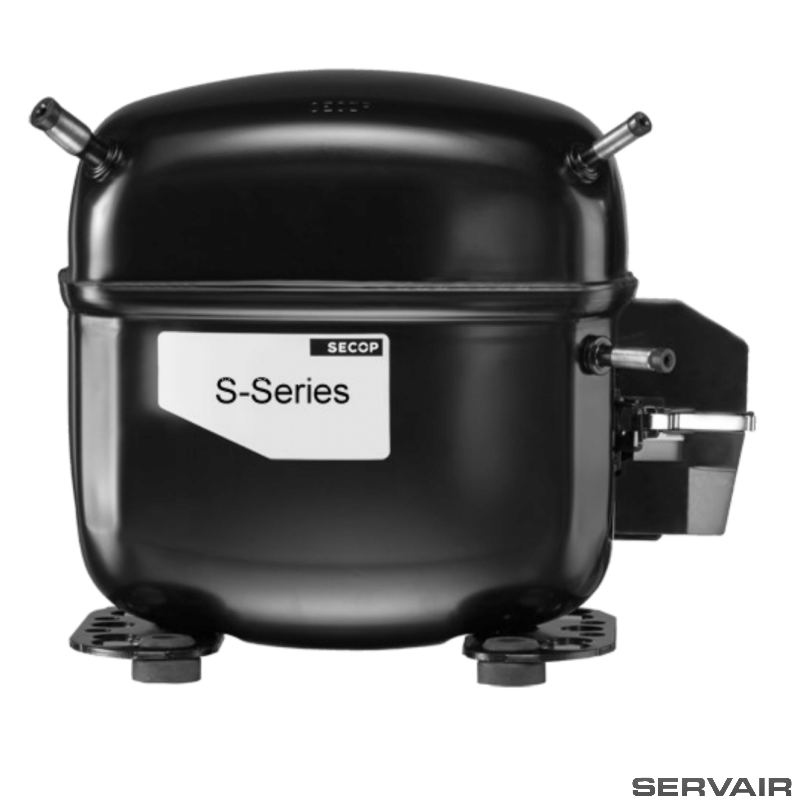

SCE18CNLX SECOP 104H7878 REFRIGERATION COMPRESSOR

SKU
RFXX-CMP02-01
TTD 2,925.00
In stock

Secop Logo
SC15CLX.2 Reciprocating Compressor
Nominal voltage limits: 208-230V/60Hz
Refrigerant: R290
Operating Back Pressure: LBP
Cooling Type: Fan cooling 3.0 m/s necessary
Motor Type: CSiR
Running capacitance (uF): -/-

Add to Wish List

Size Guilde Delivery & Return

Model

Designation                                                  SCE18CNLX

208-230V/60Hz 1~

Sales code:                             104H8888



Compressor design

Oil type

Polyolester

Refrigerant(s)

R290

Oil viscosity

32cST

Displacement

17,69cm³ / 1,08cu.in

Oil quantity

550cm³ / 18,6fl.oz

Compressors on pallet

80

Refr. charge - tech. limit

450g / 15,9oz





Free gas volume comp.

1460cm³ / 49,4fl.oz





Weight

14,2kg / 31,3lbs





Motor protection

external





Winding resistance main

3,5Ω (at 25°C)





Winding resistance aux

20,7Ω (at 25°C)





Max. winding temp.

125°C / 257°F





Max. discharge temp.

140°C / 284°F







General - Configurations with SCE18CNLX



Conf. 1

Motorconfiguration

CSIR

Power supply (nominal)

208-230V/60Hz

Number of phases

1

Voltage range

187-253V

Approvals

UL, KC, CB

Starting torque

HST

Note

Protector, relay and cover are included and pre-assembled to compressor.



Applications with SCE18CNLX



Conf. 1

Refrigerant

R290

Application

LBP

System cooling

fan 3m/s

Hot gas defrost

OK

Long interval pull down

-/-



Electrical data - Configurations with SCE18CNLX



Conf. 1

Starting device type

relay

Run capacitor

-/-

Start capacitor

60µF

LRA (locked rotor amps / 4s)

20,9A

RLA (rated load amps / 1s)

3,8A

Cut in current

20,9A

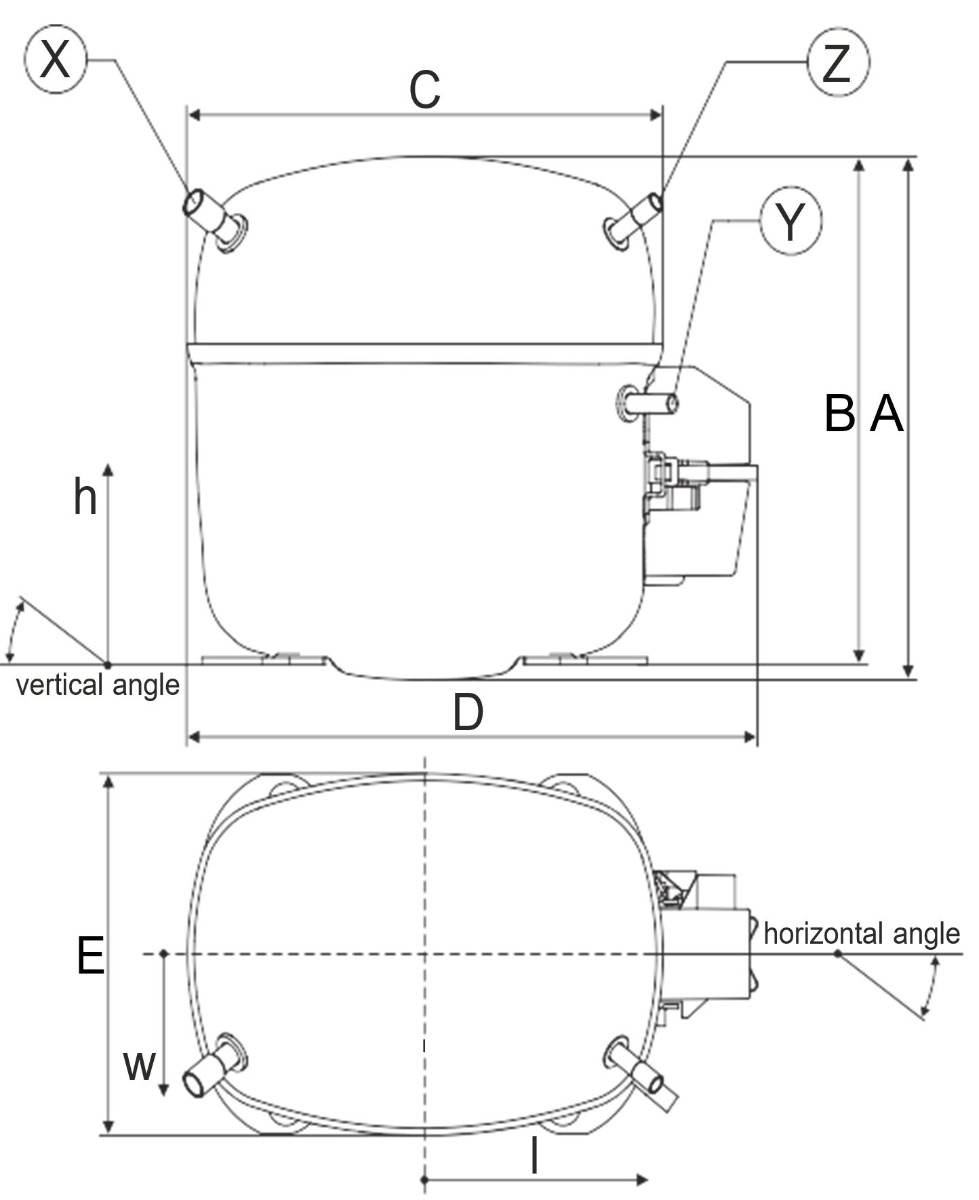

Compressor Dimensions

Housing

A Height



219mm / 8,62in



B Height



213mm / 8,39in



C Length shell



239mm / 9,41in



D Length w. cover

255mm / 10,04in



E Width



151mm / 5,94in

Connectors

Suction

Discharge

Process



X



Y

Z

Diameter

[mm]

øi 9,54-9,72

øi 6,41-6,59

øi 6,41-6,59

(i:inside, o:outside)

[in]

øi 0,38-0,38

øi 0,25-0,26

øi 0,25-0,26

Material

copper

copper

copper

Horizontal angle

±2°

37°

37°

143°

Vertical angle

±2°

30°



0°

150°

Position l/h/w

[mm]

107/193/55

115/110/63

-107/193/55

4,2/7,6/2,2

4,5/4,3/2,5

-4,2/7,6/2,2



[in]

Straight tube l.

[mm]

12

12

12

0,5

0,5

0,5



[in]

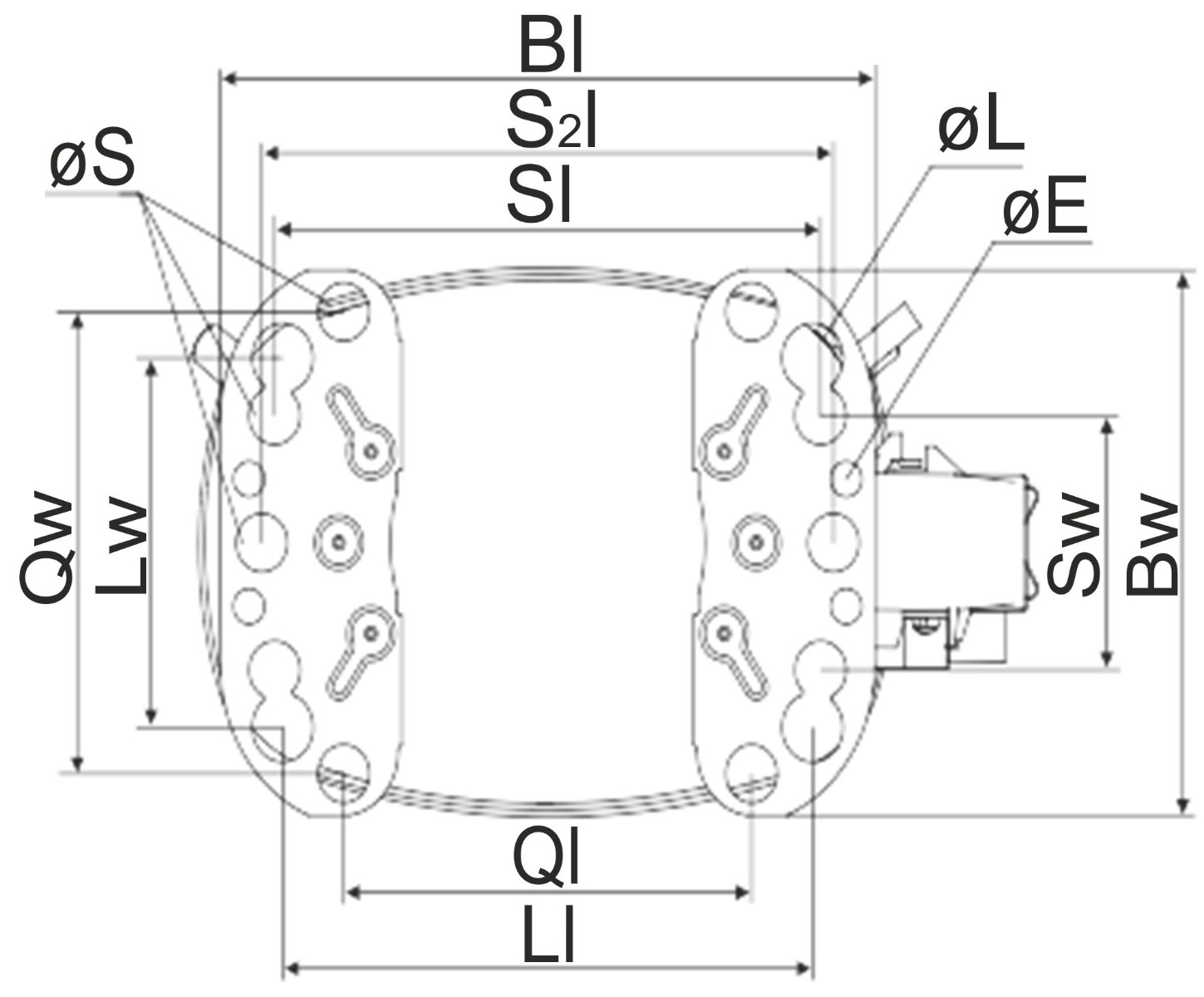

Compressor Fixation


Baseplate

[mm]

[inch]

Bl

204

8.03

Bw

150

5.9

øE

ø 9.7

ø 0.38



Large holes

 [mm]

[inch]

Ll

165

6.5

Lw

101.6

4

øL

ø 19

ø 0.75



Small holes

[mm]

[inch]

Sl

170

6.7

Sw

70

2.76

øS

ø 16

ø 0.63

Ql

127

5

Qw

127

5

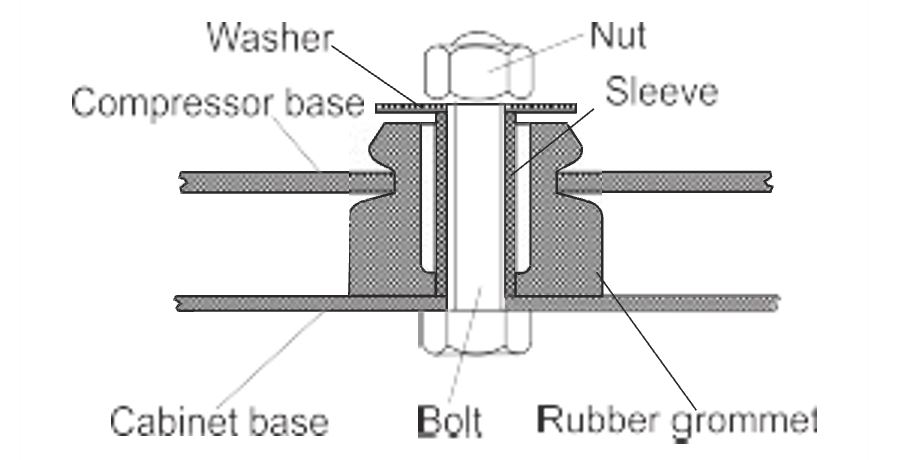

Bolt Joint

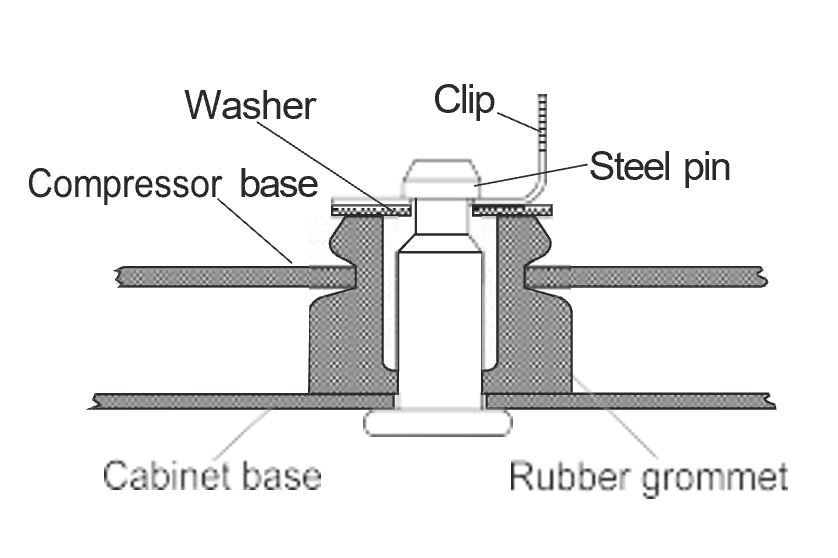

Snap-on


Mounting accessories

one comp.

multi pack

Bolt joint | M6 | ø16mm

118-1917

118-1918

Bolt joint | ø1/4" | ø16mm

118-1946



Bolt joint | ø1/4" | ø19mm

118-1949



Snap-on | ø7,3 | ø16mm

118-1947

118-1919



Application notes

LRA value on compressor label and datasheet may differ due to different test conditions for UL approval.



Configuration

Motorconfiguration

CSIR

Power supply (nominal)

208-230V/60Hz 1~

Refrigerant

R290

Application

Voltage range

MBP

187-253V

Starting torque

HST

Approvals







UL

KC

CB

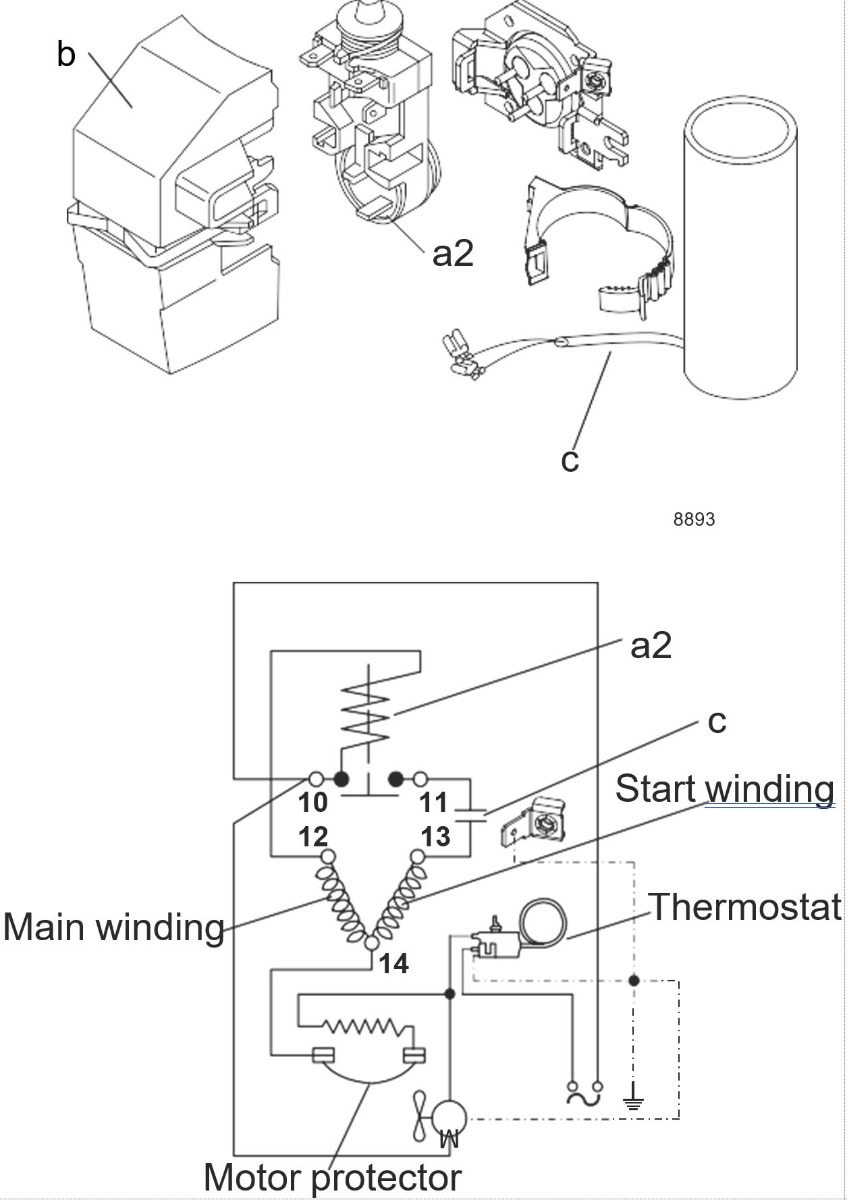

Electrical Accessories / Wiring Diagram
                                                                                                                                     CSIR

Components (relay + cover: pre-assembled)
a2 assy. relay + ext. protector (T1120)

117U7413
c c start capacitor (60µF, 6.3mm, 82kOhm)

117U5076
b plastic cover

117U1021



Ambient/ machine room temperatures minimum /maximum

Ambient temperature min:

 10°C / 50°F

Machine room temperature max:

 38°C / 101°F



System cooling (n/a: outside limits)

T ambient

LBP

MBP

HBP

32°C / 90°F

fan 3m/s

n/a

n/a

38°C / 100°F

fan 3m/s

n/a

n/a

43°C / 110°F

fan 3m/s

n/a

n/a

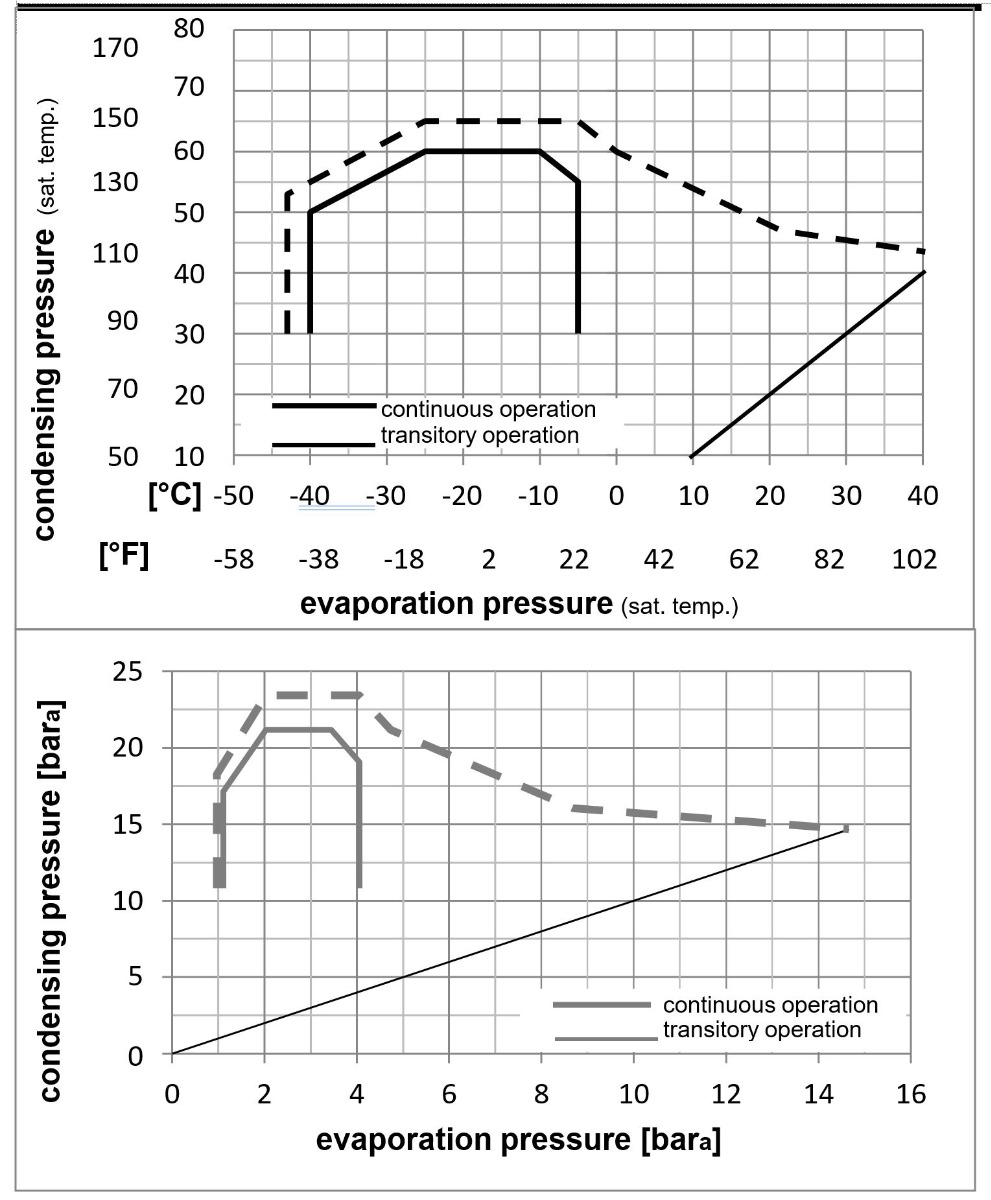

Operation Limits


Optimization + standard conditions                                                                                                  R290, 230V/60Hz, CSIR, fan 3m/s, UL, KC, CB

  Evap orating pressure (saturation temperature)
  Condensing pressure (saturation temperature)     Power Consumption
  Return gas temp.

P1		 Current Consumption
  Liquid temp.
COP
     EER
I		 Ref. Mass Flow
ṁ
  Cooling Capacity
pe pc RGT Tliq [W] [Btu/h] [kcal/h] [W/W] [Btu/Wh] [kcal/Wh] [W] [H] [kg/h]

[°C]

[°F]

-23

-10

54

130

32

90

32

90

937,8

3203

807,1

1,50

5,13

1,29

624,8

3,45

9,50

 ASHRAE LBP

[°C]

[°F]

-25

-13

55

131

32

90

55

131

693,8

2370

597,1

1,16

3,98

1,00

596,0

3,34

8,64

 cecomaf LBP

[°C]

[°F]

-35

-31

40

104

20

68

40

104

522,6

1785

449,8

1,15

3,93

0,99

453,8

2,85

5,97

 EN12900 LBP

[°C]

[°F]

-23

-10

49

120

4,4

40

49

120

777,2

2654

668,9

1,27

4,33

1,09

612,9

3,39

10,76

 ARI540 LBP

[°C]

[°F]

-23

-10

41

105

32

90

32

90

1058,2

3614

910,7

1,78

6,10

1,54

592,9

3,29

10,72

 AHAM LBP

[°C]

[°F]

-35

-31

45

113

32

90

45

113

480,8

1642

413,8

1,07

3,64

0,92

450,8

2,83

5,39

 opt


Performance tables                                                                                                                                R290, 230V/60Hz, CSIR, fan 3m/s, UL, KC, CB

  pe Cooling Capacity COP EER   P1 I m



[°C]

[°F]

[W]

[Btu/h]

[kcal/h]

[W/W]

[Btu/Wh]

[kcal/Wh]

[W]

[A]

[kg/h]

[°C / °F]

-40

-40

325,1

1110

279,8

0,84

2,88

0,73

385,0

2,65

3,63

cond. pressure

-34

-30

499,0

1704

429,5

1,09

3,72

0,94

458,3

2,85

5,59

pc= 45/113

-29

-20

694,7

2372

597,9

1,30

4,45

1,12

532,9

3,09

7,81

return gas temp.

-23

-10

918,3

3136

790,3

1,51

5,17

1,30

606,7

3,35

10,37

RGT= 32/90

-21

-5

1042,6

3561

897,3

1,62

5,54

1,40

642,6

3,49

11,80

liquid temp

-15

5

1320,2

4509

1136,1

1,86

6,34

1,60

711,2

3,77

15,02

Tliq= 45/113

-5

23

1934,3

6606

1664,7

2,37

8,08

2,04

817,5

4,22

22,27

[°C / °F]

-40

-40

202,8

693

174,5

0,65

2,21

0,56

312,8

2,34

2,50

cond. pressure

-34

-30

370,3

1265

318,7

0,89

3,03

0,76

417,6

2,68

4,58

pc= 55/131

-29

-20

553,2

1889

476,1

1,06

3,61

0,91

523,0

3,06

6,87

return gas temp

-23

-10

757,9

2588

652,3

1,21

4,13

1,04

626,9

3,46

9,45

RGT= 32/90

-21

-5

870,4

2972

749,1

1,28

4,39

1,11

677,5

3,67

10,88

liquid temp

-15

5

1119,6

3823

963,5

1,44

4,93

1,24

775,0

4,07

14,08

Tliq= 55/131

-5

23

1667,0

5693

1434,6

1,79

6,11

1,54

931,6

4,74

21,24
