SC15MLX.2 SECOP RECIPROCATING REFRIGERATION COMPRESSOR

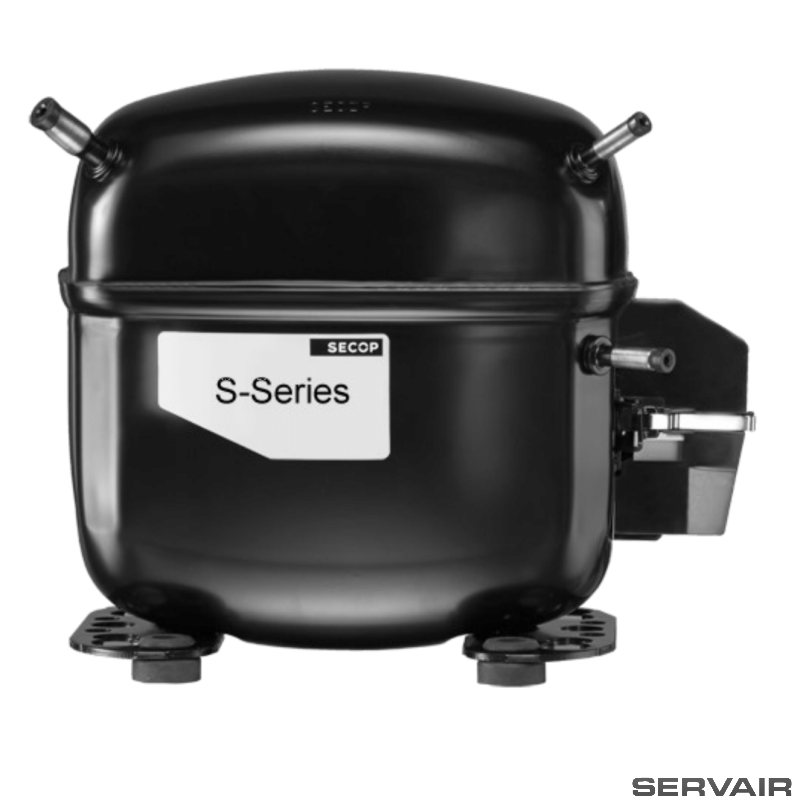

SC15MLX.2 Reciprocating Compressor
Nominal voltage limits: 115V/60Hz
Refrigerant: R404A/R507
Operating Back Pressure: MBP
Cooling Type: Fan cooling 3.0 m/s necessary
Restriction Device: Capillary pipe
Motor Type: CSR
Running capacitance (uF): 23.5
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010

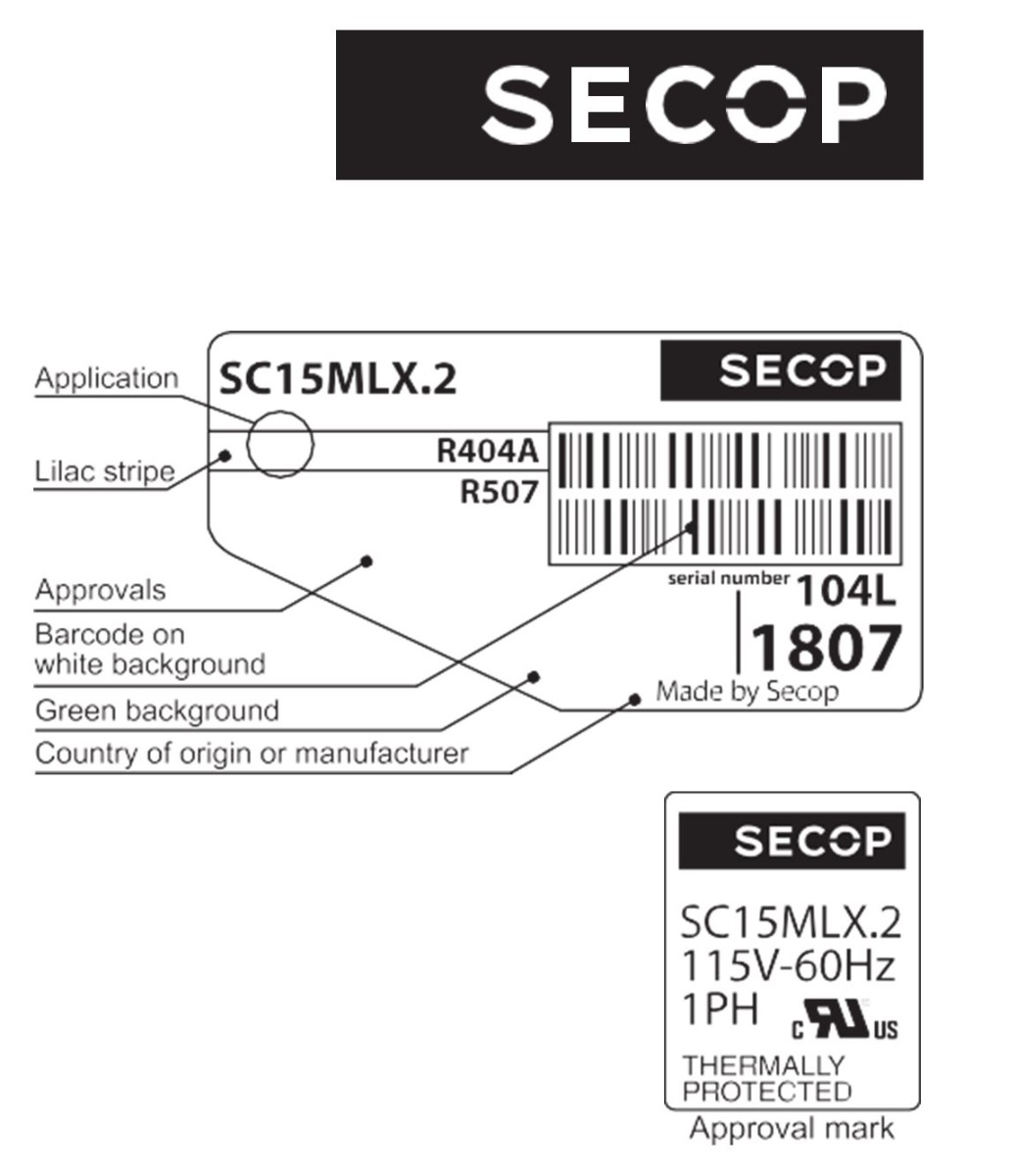

SC15MLX.2
MBP Compressor
R404A/R507
115V 60Hz
General
|
Code number |
104L1807 |
|
Approvals |
UL984 |
|
Compressors on pallet |
60 |
Application
|
Application |
MBP |
|
|
Frequency Hz |
50 |
60 |
|
Evaporating temperature °F |
– |
-10 to 45 |
|
Voltage range V |
– |
103 -127 |
|
Max. condensing temperature continuous (short) °F |
– |
131 (140) |
|
Max. winding temperature continuous (short) °F |
– |
257 (275) |
Cooling requirements
|
Frequency Hz |
50 |
60 |
||||
|
Application |
LBP |
MBP |
HBP |
LBP |
MBP |
HBP |
|
90°F |
– |
– |
– |
– |
F2 |
– |
|
100°F |
– |
– |
– |
– |
F2 |
– |
|
110°F |
– |
– |
– |
– |
– |
– |
|
Remarks on application: |
||||||
S = Static cooling normally sufficient
O = Oil cooling
F1 = Fan cooling 1.5 m/s
(compressor compartment temperature equal to ambient temperature)
F2 = Fan cooling 3.0 m/s necessary
SG = Suction gas cooling normally sufficent
– = not applicable in this area
Motor
|
Motor type |
CSR |
|
|
LRA (rated after 4 sec. UL984), HST | LST A |
63.0 |
– |
|
Cut in Current, HST | LST A |
63.0 |
– |
|
Resistance, main | start winding (77°F) Ω |
0.6 |
3.2 |
Design
|
Displacement |
cu.in |
0.93 |
|
Oil quantity (type) |
fl.oz. |
18.6 (polyolester) |
|
Maximum refrigerant charge |
oz. |
45.5 |
|
Free gas volume in compressor |
fl.oz. |
49.4 |
|
Weight without electrical equipment |
lbs. |
30.9 |

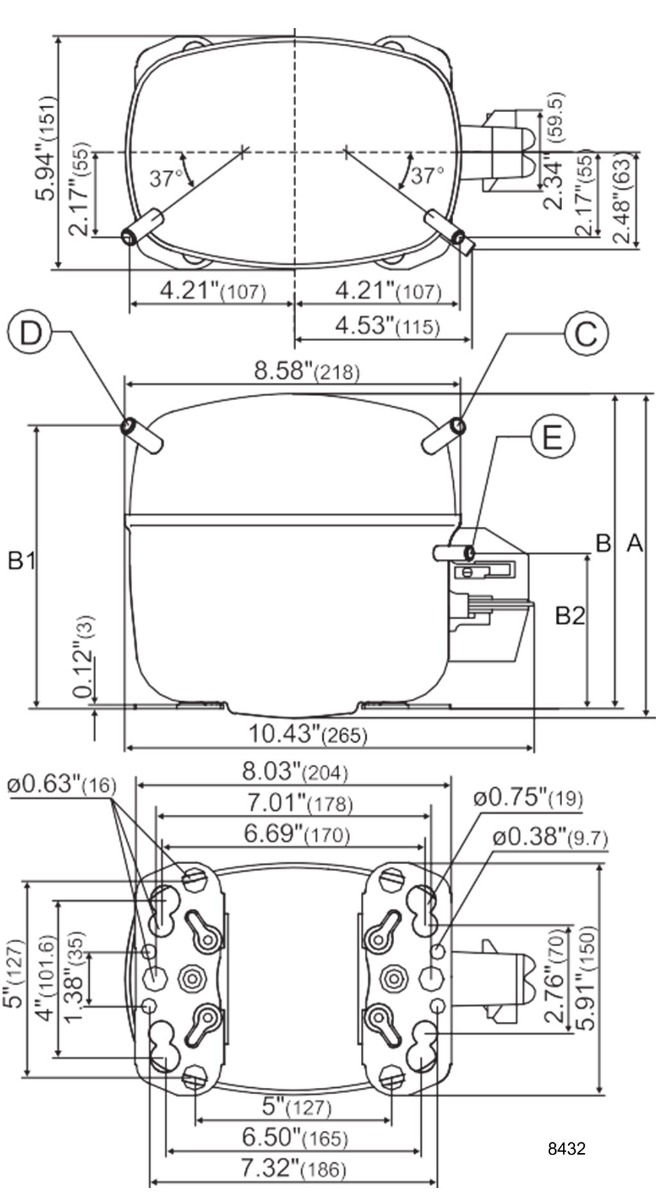

Dimensions
|
Height |
inch |
A |
8.62 |
|
B |
8.39 |
||
|
B1 |
7.60 |
||
|
B2 |
4.33 |
||
|
Suction connector |
location, I.D. in. | angle |
C |
0.378-0.385 | 37° |
|
material | comment |
Copper | Rubber plug |
||
|
Process connector |
location, I.D. in. | angle |
D |
0.252-0.259 | 37° |
|
material | comment |
Copper | Rubber plug |
||
|
Discharge connector |
location, I.D. in. | angle |
E |
0.252-0.259 | 37° |
|
material | comment |
Copper | Rubber plug |
||
|
Oil cooler connector |
location, I.D. in. | angle |
F |
– |
|
material | comment |
– |
||
|
Remarks: |
|||
ASHRAE MBP 115V, 60Hz, fan cooling F2
|
Evap. temp. in °F |
-49 |
-40 |
-30 |
-20 |
-13 |
-10 |
0 |
10 |
14 |
20 |
30 |
40 |
41 |
45 |
50 |
59 |
68 |
|
Capacity in BTU/h |
|
|
|
|
|
2423 |
3156 |
4048 |
4454 |
5120 |
6396 |
7897 |
8060 |
8740 |
|
|
|
|
Power cons. in W |
|
|
|
|
|
678 |
790 |
900 |
944 |
1010 |
1121 |
1235 |
1246 |
1293 |
|
|
|
|
Current cons. in A |
|
|
|
|
|
8.12 |
8.74 |
9.44 |
9.74 |
10.20 |
11.03 |
11.92 |
12.02 |
12.39 |
|
|
|
|
EER in BTU/Wh |
|
|
|
|
|
3.57 |
4.00 |
4.50 |
4.72 |
5.07 |
5.71 |
6.39 |
6.47 |
6.76 |
|
|
|
EN 12900 Household (CECOMAF)* 115V, 60Hz, fan cooling F2
|
Evap. temp. in °F |
-49 |
-40 |
-30 |
-20 |
-13 |
-10 |
0 |
10 |
14 |
20 |
30 |
40 |
41 |
45 |
50 |
59 |
68 |
|
Capacity in W |
|
|
|
|
|
799 |
925 |
1147 |
1409 |
1606 |
1715 |
2069 |
2474 |
2669 |
|
|
|
|
Power cons. in W |
|
|
|
|
|
689 |
739 |
815 |
894 |
946 |
974 |
1058 |
1147 |
1187 |
|
|
|
|
Current cons. in A |
|
|
|
|
|
8.12 |
8.40 |
8.87 |
9.39 |
9.77 |
9.97 |
10.60 |
11.28 |
11.60 |
|
|
|
|
COP in W/W |
|
|
|
|
|
1.16 |
1.25 |
1.41 |
1.58 |
1.70 |
1.76 |
1.95 |
2.16 |
2.25 |
|
|
|
|

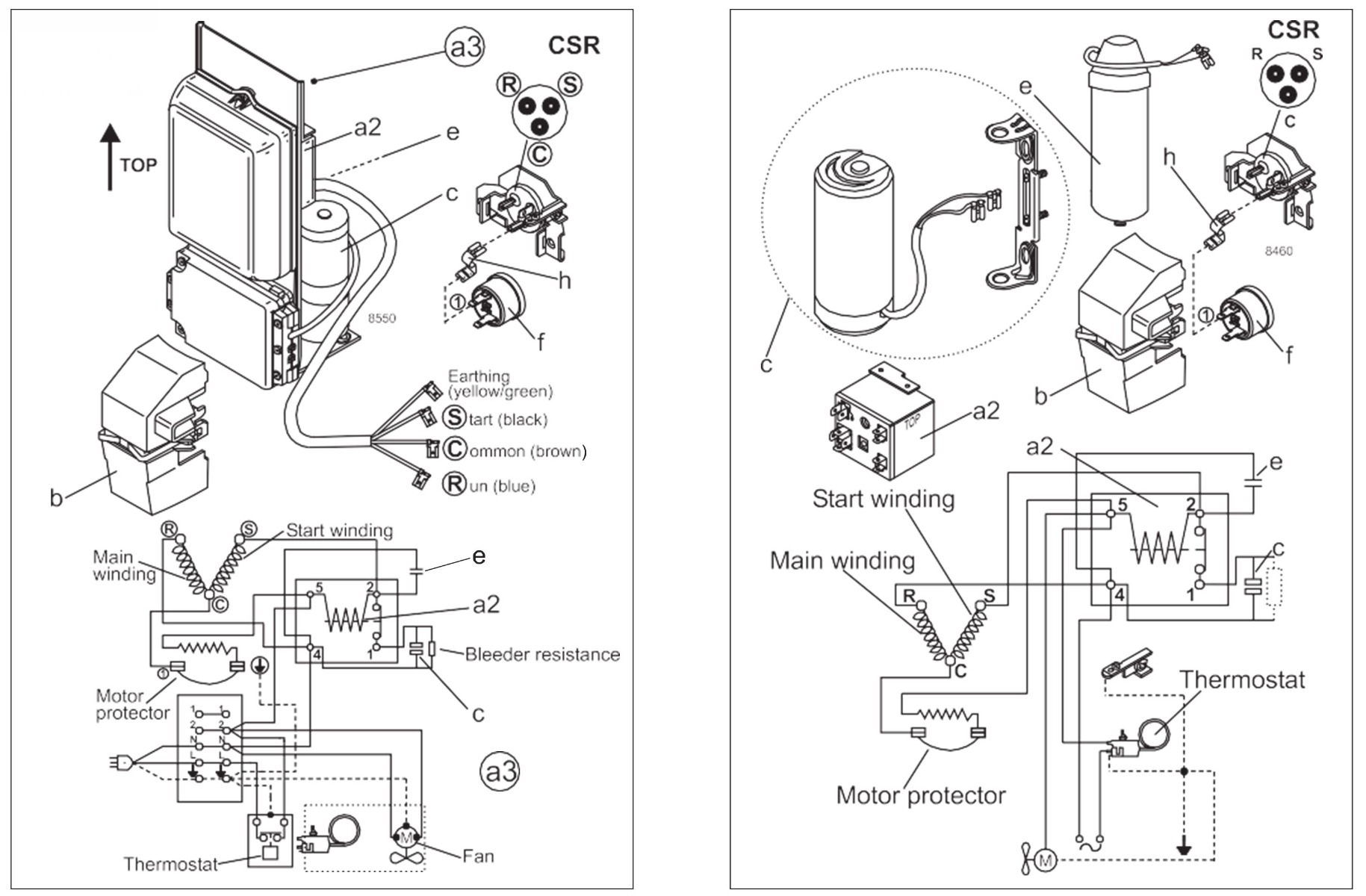

Accessories for SC15MLX.2 |
Figure |
Code number |
|
|
Starting device assembly |
|
|
|
|
CSR CSIR |
23.6 in. cable length 23.6 in. cable length |
a3 |
117-7045 – |
|
Starting device components |
|
|
|
|
Starting relay |
1/4 in. spade connect. |
a2 |
117-7441 |
|
Start. capacitor 410 µF 1/4 in. spade connect. |
c |
117U5043 |
|
|
Run capacitor 23.5 µF |
1/4 in. spade connect. |
e |
117-7114 |
|
Cover |
b |
117U1021 *) |
|
|
Protector |
f |
117U3212 *) |
|
|
Protector holder |
h |
117U0439 *) |
|
|
*) Remarks: Cover, protector, protector holder parts of compressor |
|||
|
Test conditions |
ASHRAE MBP |
EN 12900/CECOMAF* |
|
Condensing temp. |
130°F |
113°F |
|
Ambient temperature |
95°F |
90°F |
|
Suction gas temp. |
95°F |
90°F |
|
Liquid temperature |
115°F |
no subcooling |
|
Mounting accessories |
Code number |
|
|
Bolt joint for one comp. |
Ø: 5/8 in. |
118-1917 |
|
Bolt joint in quantities |
Ø: 5/8 in. |
118-1918 |
|
Snap-on in quantities |
Ø: 5/8 in. |
118-1919 |
Secop accepts no responsibility for possible errors in catalogs, brochures, and other printed material. Secop reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary to specifications already agreed. All trademarks in this material are the property of the respective companies. Secop and the Secop logotype are trademarks of Secop GmbH. All rights reserved. www.secop.com
