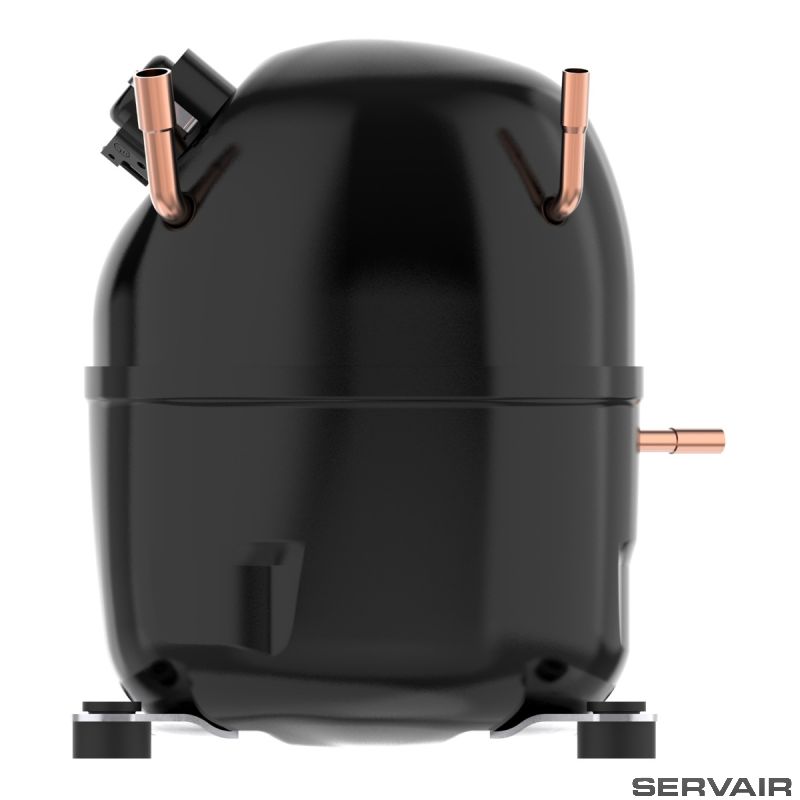

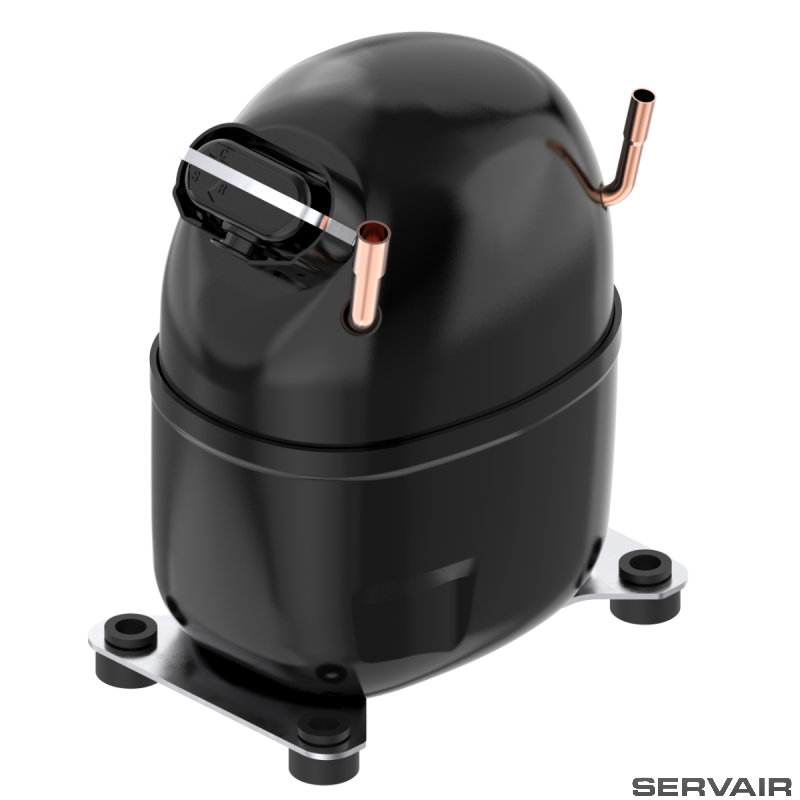

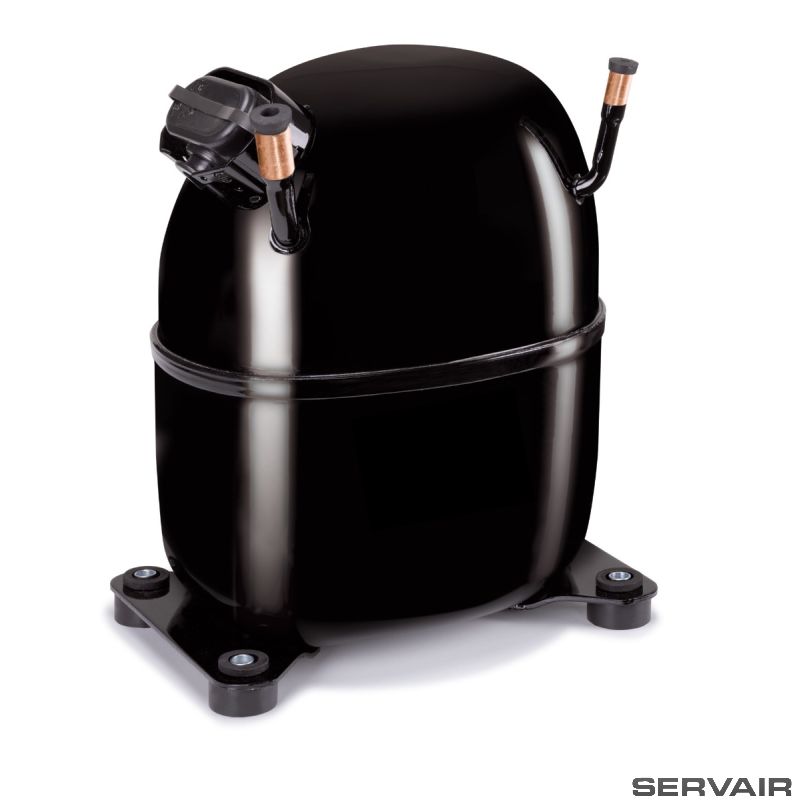

DANFOSS MS26FF REFRIGERATION COMPRESSOR
Danfoss Refrigeration Compressor MS26FF
Refrigerants: R404A
Segment usage: Refrigeration LT
Compressor power supply [V]: 230/1/60
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
23 Kilogram |
|
Net weight |
22.6 Kilogram |
|
Volume |
22 Liter |
|
EAN |
5702424674380 |
|
Applications |
LBP |
|
Auxiliary winding resistance (start winding) for single-phase compressors [Ohm] |
4.87 |
|
Brand technique |
Reciprocating compressor |
|
Capacity control |
Fixed speed |
|
Colour |
Black |
|
Compressor power supply [V] |
230/1/60 |
|
Configuration code |
Single |
|
Cut in current HST 60Hz [A] |
42 A |
|
Description |
MS26FF |
|
Discharge connection angle [°] |
63 ° |
|
Discharge connection comments |
Rubber plug |
|
Discharge connection diameter [mm] |
8 mm |
|
Discharge connection height [mm] |
171 mm |
|
Discharge connection material |
Copper |
|
Economizer |
No |
|
Family |
S |
|
Frequency [Hz] |
60 |
|
Height from baseplate [mm] |
276 mm |
|
High value of nominal voltage at 60Hz [V] |
230 V |
|
High value of voltage range at 60Hz [V] |
253 V |
|
In scope of WEEE and contain batteries |
No |
|
Low value of nominal voltage at 60Hz [V] |
208 V |
|
Low value of voltage range at 60Hz [V] |
177 V |
|
LRA HST 60Hz [A] |
42 A |
|
Main winding resistance for single-phase compressors [Ohm] |
1.38 |
|
MCC |
9.50 A |
|
Model number |
MS26FF |
|
Motor type |
CSR |
|
No. of phases (compressor) |
1 |
|
Oil quantity [cm3] |
887 cm³ |
|
Oil type |
POE |
|
Packing format |
Single pack |
|
Packing quantity |
1 |
|
Process connection angle [°] |
0 ° |
|
Process connection comments |
Rubber plug |
|
Process connection diameter [mm] |
9.7 mm |
|
Process connection material |
Copper |
|
Product group |
Hermetic compressors |
|
Product Name Description |
Reciprocating compressor S |
|
Refrigerant charge [kg] [Max] |
1.7 kg |
|
Refrigerants |
R404A |
|
Rotational speed at 60Hz [rpm] |
3600 rpm |
|
Run capacitor capacitance |
20 µF |
|
Segment usage |
Refrigeration LT |
|
Start capacitor capacitance |
88-108 µF |
|
Suction connection angle [°] |
0 ° |
|
Suction connection diameter [mm] |
12.7 mm |
|
Suction connection height [mm] |
261 mm |
|
Suction connection material |
Copper |
|
Swept volume [cm3] |
25.93 cm³ |
|
Technology |
Reciprocating |
|
Total height [mm] |
282 mm |
|
Type |
MS26 |
|
U.S. EPA label |
For installations using U.S. EPA restricted refrigerants, this product may be used for servicing existing equipment only. |
|
Winding temperature short term [°C] [Max] |
135 °C |
|
Winding temperature stat [°C] [Max] |
115 °C |
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
| Brand | Danfoss |
|---|
Product Attachments
