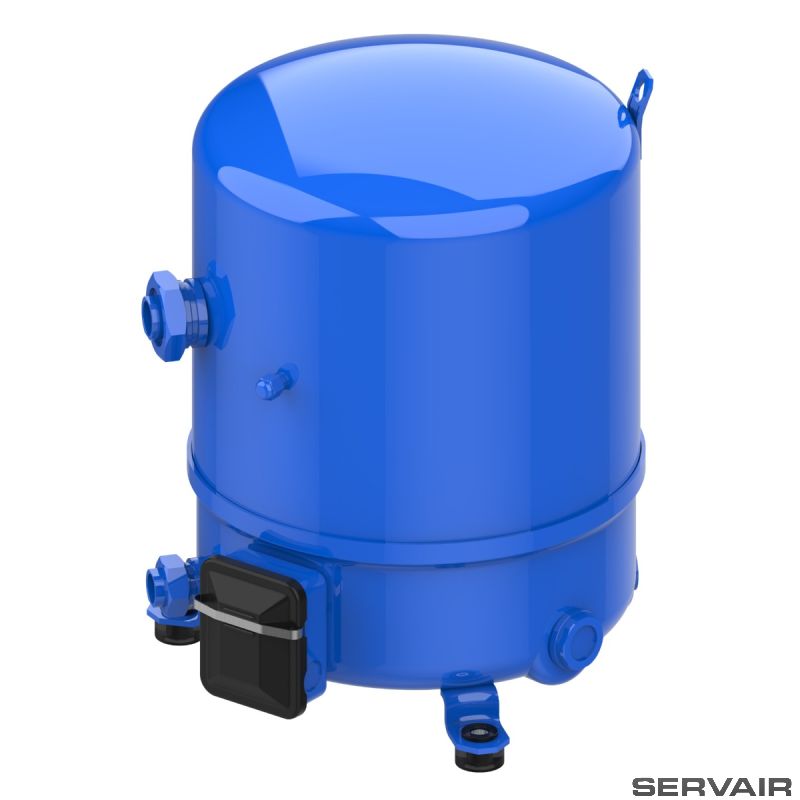

DANFOSS NTZ136-4LR1 REFRIGERATION COMPRESSOR
Danfoss Refrigeration Compressor NTZ136-4LR1
Refrigerants: R404A; R452A
Segment usage: Refrigeration LT
Compressor power supply [V]: 400/3/50, 460/3/60
Packing format: Single pack
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
37.42 Kilogram |
|
Net weight |
34.93 Kilogram |
|
Volume |
61.54 Liter |
|
EAN |
5702428521161 |
|
Approval |
CE |
|
Brand technique |
Reciprocating compressor |
|
Capacity control |
Fixed speed |
|
China RoHS compliance |
Out of scope |
|
Colour |
Blue |
|
Compressor power supply [V] |
400/3/50 460/3/60 |
|
Configuration code |
Single |
|
Connection type |
Rotolock |
|
Cylinder |
2 |
|
Description |
NTZ136-4B |
|
Diameter [mm] |
288 mm |
|
Discharge connection height [mm] |
74 mm |
|
Discharge connection pipe size [in] |
3/4 in |
|
Discharge connection size [in] |
1 1/4 in |
|
Drawing number |
8502012g |
|
Economizer |
No |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(a), 6(a)-I, 7(a), 7(c)-I, 8(b), 9(b) |
|
Factory HP [bar] |
25 bar |
|
Factory LP [bar] |
25 bar |
|
Family |
NTZ |
|
Fitting remark |
(shipped with rotolock version only) |
|
Fitting sleeve |
ODF |
|
Fitting standard |
Rotolock |
|
Frequency [Hz] |
50 |
|
Gauge port HP |
None |
|
Gauge port LP |
Schrader |
|
Glass mounting |
Threaded |
|
Glass torque [Nm] |
50 N-m |
|
GP LP torque [Nm] |
15 N-m |
|
High Side TS Max |
150 °C |
|
High Side TS Min |
-35 °C |
|
High Side Volume |
0.6 L |
|
High value of nominal voltage at 50Hz [V] |
400 V |
|
High value of voltage range at 50Hz [V] |
440 V |
|
In scope of WEEE and contain batteries |
No |
|
IP protection class |
IP55 (with cable gland) |
|
Low Side TS Max |
50 °C |
|
Low Side TS Min |
-35 °C |
|
Low Side Volume |
16.5 L |
|
Low value of nominal voltage at 50Hz [V] |
380 V |
|
Low value of voltage range at 50Hz [V] |
340 V |
|
LRA |
51 A |
|
Max pressure (PS) - high side |
28.5 bar |
|
Max pressure (PS) - low side |
22.6 bar |
|
MCC |
14.3 A |
|
Model number |
NTZ136A4LR1B |
|
Motor protection |
Internal overload protector |
|
Mounting torque [Nm] |
15 N-m |
|
Network power supply [V/Ph/Hz] |
380-415/3/50 460/3/60 |
|
Number of starts per hour [Max] |
12 |
|
Oil charge [L] |
1.8 L |
|
Oil equalization |
3/8'' flare SAE |
|
Oil equalization torque [Nm] |
30 N-m |
|
Oil reference |
175PZ |
|
Packaging height [mm] |
450 mm |
|
Packaging length [mm] |
385 mm |
|
Packaging width [mm] |
375 mm |
|
Packing format |
Single pack |
|
Packing quantity |
1 |
|
Phase |
3 |
|
Power connections |
Spade |
|
Product group |
Hermetic compressors |
|
Product Name Description |
Reciprocating compressor NTZ |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerant charge [kg] [Max] |
5 kg |
|
Refrigerants |
R404A |
|
Rotational speed at 50Hz [rpm] |
2900 rpm |
|
SCIP dossier no. |
9b3fb119-9852-486a-92dd-53aa9c96fd3b |
|
Segment usage |
Refrigeration LT |
|
Shipped fittings |
Suction and discharge solder sleeves, rotolock nuts and gaskets |
|
Shipped instructions |
Installation instructions |
|
Shipped mounting |
Mounting kit with grommets, bolts, nuts, sleeves and washers |
|
Shipped oil |
Initial oil charge |
|
Suction connection height [mm] |
265 mm |
|
Suction connection material |
- |
|
Suction connection pipe size [in] |
1 1/8 in |
|
Suction connection size [in] |
1 3/4 in |
|
Swept volume [cm3] |
136 cm³ |
|
Technology |
Reciprocating |
|
Test dif [bar] [Max] |
30 bar |
|
Test HP [bar] [Max] |
30 bar |
|
Test LP [bar] [Max] |
25 bar |
|
Torque earth [Nm] |
3 N-m |
|
Torque power [Nm] |
3 N-m |
|
Total height [mm] |
413 mm |
|
Type |
NTZ136 |
|
UK RoHS compliance |
Out of scope |
|
Winding resistance for three-phase compressors with identical windings [Ohm] |
3.8 Ohm |
