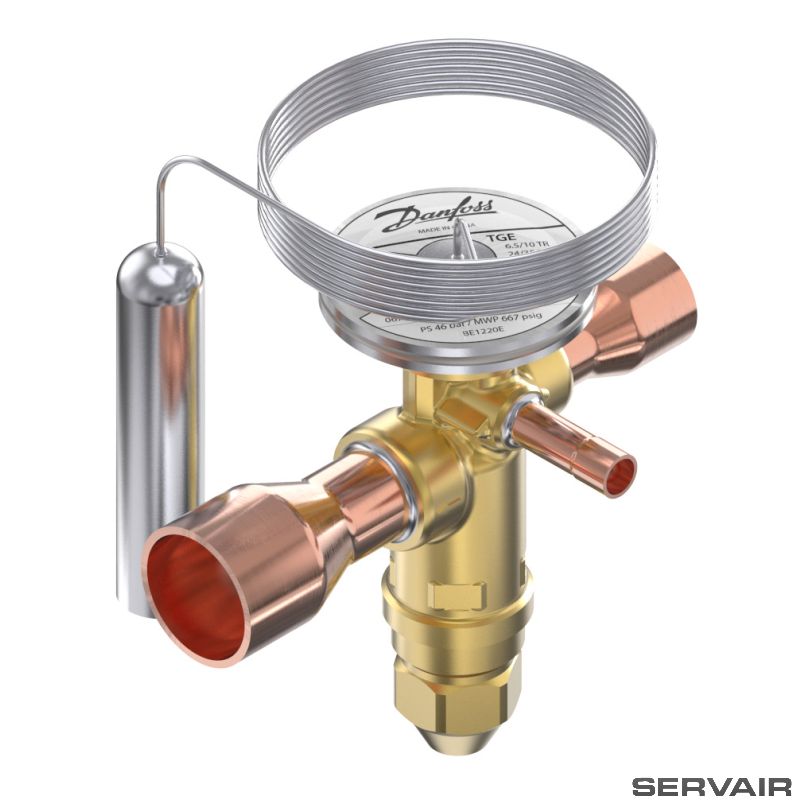

DANFOSS 067N9418 EXPANSION VALVE
Danfoss Expansion Valve 067N9418
Temperature range [°C]: -30 - 15
Orifice capacities [kW]: 104.00
Orifice capacities [TR]: 30.00
Pressure equalization: Externally equalized
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
1.207 Kilogram |
|
Net weight |
1.003 Kilogram |
|
Volume |
3.233 Liter |
|
EAN |
5702428488907 |
|
Approval |
C UL US LISTED |
|
Balanced port [Yes/No] |
Yes |
|
Body material |
Brass |
|
Capillary tube length [in] |
118 in |
|
Capillary tube length [mm] |
3000 mm |
|
China RoHS compliance |
Out of scope |
|
Connection material |
Copper |
|
Direction |
Straightway |
|
Element temperature max. [°C] |
110 °C |
|
Element temperature max. [°F] |
230 °F |
|
Equalization connection type |
Solder, ODF |
|
Equalization size [in] |
1/4 in |
|
EU RoHS compliance |
Out of scope |
|
Flow direction |
Bi-flow |
|
Flow direction indicator |
Embossed 1-way arrow |
|
Fluid Group |
2 |
|
In scope of WEEE and contain batteries |
No |
|
Inlet connection type |
Solder, ODF |
|
Inlet size [in] |
1 1/8 in |
|
Max. Working Pressure [bar] |
49 bar |
|
Max. Working Pressure [psig] |
711 psig |
|
MOP Point [psig] |
MAH |
|
Orifice capacities [kW] |
104 kW |
|
Orifice capacities [TR] |
30 TR |
|
Orifice size |
30 |
|
Outlet connection type |
Solder, ODF |
|
Outlet size [in] |
1 3/8 in |
|
Packing format |
Multi pack |
|
Parts included |
Bulb strap |
|
PED category |
Art. 4, par. 3 |
|
Pressure equalization |
Externally equalized |
|
Product accessories |
TXV accessories |
|
Product group |
Expansion valves |
|
Product Name Description |
Thermostatic expansion valve |
|
Quantity per packing format |
6 pc |
|
Rated cap. cond. Range N [IMP] |
tcond=100 °F |
|
Rated cap. cond. Range N [SI] |
tcond=38 °C |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R22/R407C |
|
SCIP dossier no. |
d44ec740-dfe8-4c0a-9644-96406f010504 |
|
SCIP dossier product name |
TGE |
|
Serviceable |
No |
|
Static Superheat (SS) [°C] |
4 °C |
|
Static Superheat (SS) [°F] |
7.2 °F |
|
Superheat setting |
Adjustable |
|
Temperature range [°C] [max] |
15 °C |
|
Temperature range [°C] [min] |
-30 °C |
|
Temperature range [°F] [max] |
60 °F |
|
Temperature range [°F] [min] |
-22 °F |
|
Type |
TGE |
|
UK RoHS compliance |
Out of scope |
|
UL approved refrigerants |
R22 |
