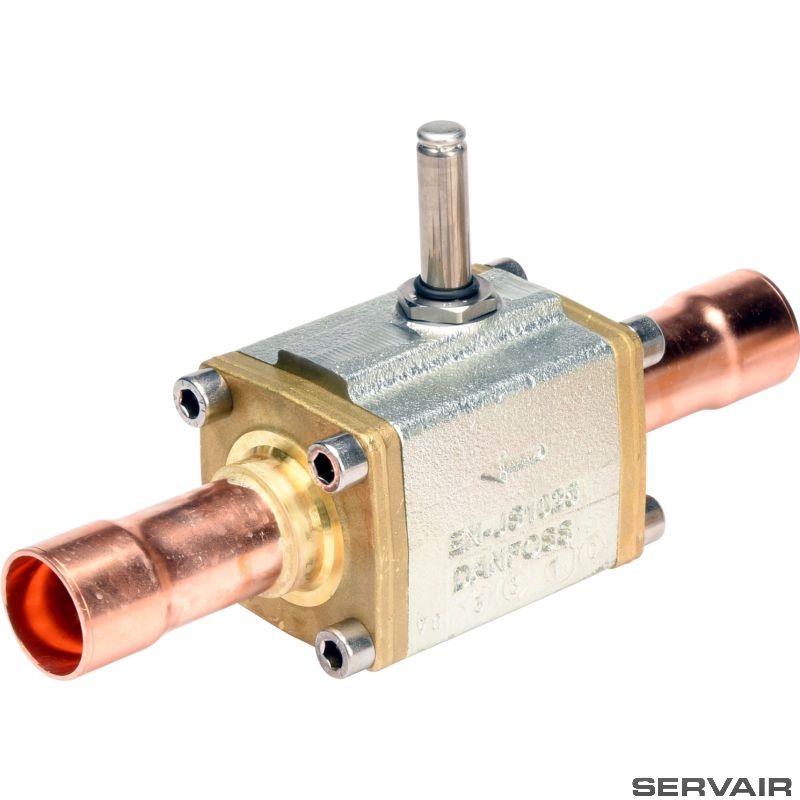

DANFOSS 032L1104 SOLENOID VALVE
Danfoss Solenoid Valve 032L1104
Body material: Brass
Kv value [m³/h]: 16.700
Packing format: Single pack
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
4.8 Kilogram |
|
Net weight |
4.42 Kilogram |
|
Volume |
7.56 Liter |
|
EAN |
5702428943192 |
|
Actuator system [mm] |
13.5 mm |
|
Ambient temperature |
-40 - 80 °C |
|
Approval |
EAC |
|
Body material |
Brass |
|
China RoHS compliance |
Yes exceed limitations |
|
Coil |
No |
|
Cv value [gal/min] |
19.3 gal/min |
|
Direction |
Straightway |
|
EU RoHS compliance |
Yes with exemptions |
|
EU RoHS exemption clause |
6(a), 6(c) |
|
Function |
NC |
|
In scope of WEEE and contain batteries |
No |
|
Inlet connection type |
Solder, ODF |
|
Inlet size [in] |
1 5/8 in |
|
Kv value [m³/h] |
16.7 m³/h |
|
Lubricants compatibility |
AB |
|
Manual operation option |
No |
|
Max. Working Pressure [bar] |
45.2 bar |
|
Max. Working Pressure [psig] |
655 psig |
|
MaxOPD[bar] 10W AC |
38 bar |
|
MaxOPD[bar] 20W DC |
17 bar |
|
MaxOPD[bar] coil BJ/BX |
31 bar |
|
MaxOPD[psi] 10W AC |
550 psi |
|
MaxOPD[psi] 20W DC |
246 psi |
|
MaxOPD[psi] coil BJ/BX |
450 psi |
|
Medium temperature range [°C] [max] |
105 °C |
|
Medium temperature range [°C] [min] |
-40 °C |
|
Medium temperature range [°F] [max] |
221 °F |
|
Medium temperature range [°F] [min] |
-40 °F |
|
MinODP [bar] |
0.2 bar |
|
MinODP [psi] |
2.9 psi |
|
MOPD[bar/psi] |
Coil Dependend |
|
Orifice size [mm] |
22.23 mm |
|
Outlet connection type |
Solder, ODF |
|
Outlet size [in] |
1 5/8 in |
|
Packing format |
Single pack |
|
Parts Program name |
EVR |
|
Product accessories |
Solenoid valve accessories |
|
Product group |
Solenoid valves |
|
Product Name Description |
Solenoid valve |
|
Quantity per packing format |
1 pc |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R1234ze(E) |
|
SCIP dossier no. |
6a76eb5e-6ca8-43d3-be03-8320fd28438e |
|
Serviceable |
Solenoid valve spare parts |
|
Type |
EVR 32 |
|
Type designation |
Solenoid valve, Solder |
|
UK RoHS compliance |
Out of scope |
|
UL approved refrigerants |
R125 |
|
Valve operation |
Servo-piston |
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
| Brand | Danfoss |
|---|
