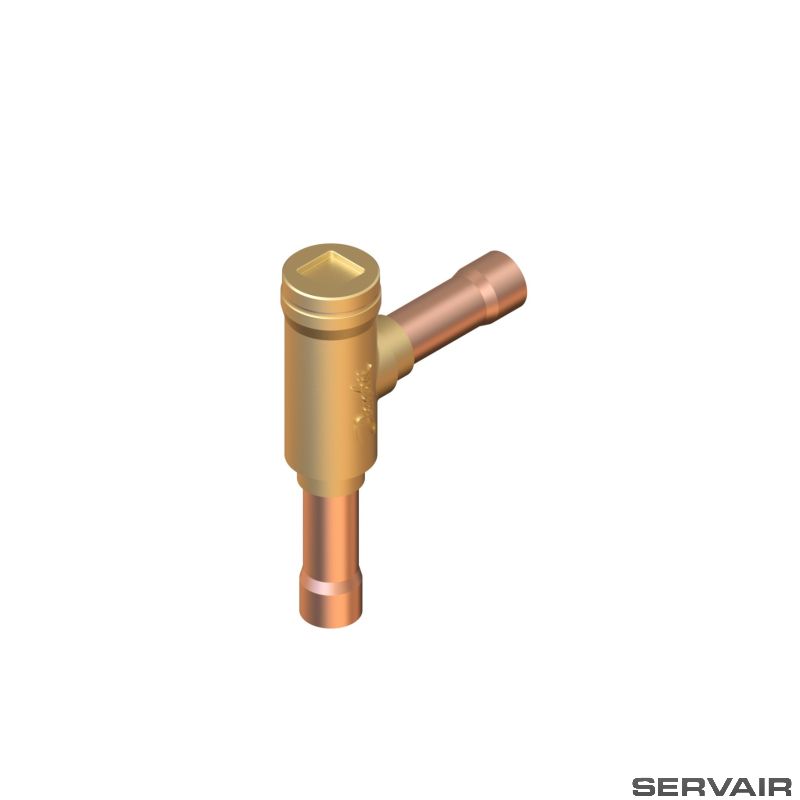

DANFOSS 020-1021 CHECK VALVE
Danfoss Check Valve 020-1021
Inlet connection type: Solder, ODF
Outlet connection type: Solder, ODF
Direction: Angleway
Packing format: Multi pack
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
1.388 Kilogram |
|
Net weight |
1.258 Kilogram |
|
Volume |
3.228 Liter |
|
EAN |
5702422034643 |
|
Approval |
C UL US LISTED |
|
Body material |
Brass |
|
China RoHS compliance |
Yes |
|
Connection material |
Copper |
|
Cv value [gal/min] |
19.07 gal/min |
|
Design |
Piston |
|
Direction |
Angleway |
|
EU RoHS compliance |
Yes |
|
EU RoHS exemption clause |
6(c) |
|
Flow direction |
Single-flow |
|
Flow direction indicator |
Embossed 1-way arrow |
|
Fluid Group |
1 |
|
Identical product |
020-0126 |
|
In scope of WEEE and contain batteries |
No |
|
Inlet connection type |
Solder, ODF |
|
Inlet size [in] |
1 1/8 in |
|
Kv value [m³/h] |
16.5 m³/h |
|
Lubricants compatibility |
Oilfree applications |
|
Max. Working Pressure [bar] |
46 bar |
|
Max. Working Pressure [psig] |
667 psig |
|
Min. Pressure drop [bar] |
0.04 bar |
|
Min. Pressure drop [psi] |
0.6 psi |
|
Oil free refrigerants |
R1234ze(E) |
|
Outlet connection type |
Solder, ODF |
|
Outlet size [in] |
1 1/8 in |
|
Packing format |
Multi pack |
|
PED category |
Art. 4, par. 3 |
|
Product group |
Check valves |
|
Product Name Description |
Check valve |
|
Quantity per packing format |
6 pc |
|
Rated cap cond, Hot gas [IMP] |
tcond=86 °F |
|
Rated cap cond, Hot gas [SI] |
tcond=30 °C |
|
Rated cap cond, Liq. cap [IMP] |
tcond=86 °F |
|
Rated cap cond, Liq. cap [SI] |
tcond=30 °C |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R1233zd(E) |
|
SCIP dossier no. |
b3a34751-5701-488e-98f4-24be945efdc1 |
|
Temperature range [°C] [max] |
140 °C |
|
Temperature range [°C] [min] |
-50 °C |
|
Temperature range [°F] [max] |
285 °F |
|
Temperature range [°F] [min] |
-58 °F |
|
Type |
NRV 28s |
|
UK RoHS compliance |
Out of scope |
|
UL approval file name |
REFRIGERANT VALVE 53R0 |
|
UL approved refrigerants |
R1233zd(E) |
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
| Brand | Danfoss |
|---|
