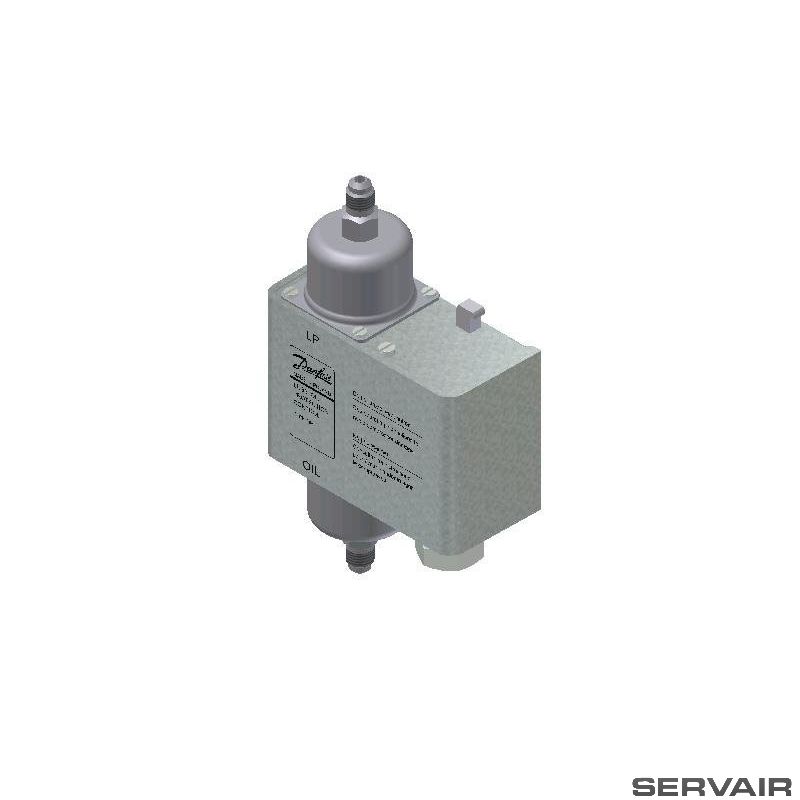

DANFOSS 060B200391 DIFFERENTIAL PRESSURE SWITCH
Danfoss Differential Pressure Switch 060B200391
Reset function: Manual Min
Pressure connection type: Flare
Pressure connection size: 1/4 in
Enclosure rating IP: IP20
Max. Working Pressure [bar]: 17.0
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
0.8 Kilogram |
|
Net weight |
0.693 Kilogram |
|
Volume |
1.891 Liter |
|
EAN |
5702424499587 |
|
Adjustment |
Cut out for falling pressure |
|
Amb. Temp. Note |
Bellows max 100 °C/212 °F |
|
Ambient temperature range [°C] [max] |
60 °C |
|
Ambient temperature range [°C] [min] |
-40 °C |
|
Ambient temperature range [°F] [Max] |
140 °F |
|
Ambient temperature range [°F] [Min] |
-40 °F |
|
Approval |
CCC |
|
Approval file name |
E31024 |
|
CE evaluated |
Yes |
|
CE evaluated |
Yes |
|
China RoHS compliance |
Yes |
|
Contact differential [bar] |
0.2 bar |
|
Contact function |
SPDT |
|
Contact rating |
AC=2 A, 250 V |
|
Electrical conn. Male/Female |
Female |
|
Electrical connection |
Swivel cable connector |
|
Electrical connection size |
NPSM 1/2 - 14 |
|
Electrical connection standard |
ANSI/ASME B1.20.1 |
|
EN 60947 electrical properties |
Insulation: 250V |
|
EN 60947 wiring properties |
Flex, ferrules: 0.2-1.0 mm2 |
|
Enclosure rating IP |
IP20 |
|
Equipment |
Thermal time relay |
|
EU RoHS compliance |
Out of scope |
|
Fixed Differential [bar] |
0.65 bar |
|
Fixed Differential [psi] |
9 psi |
|
In scope of WEEE and contain batteries |
No |
|
Max. test pressure [bar] Pe |
22 bar |
|
Max. test pressure [psig] |
319 psig |
|
Max. Working Pressure [bar] |
17 bar |
|
Max. Working Pressure [psig] |
245 psig |
|
Operat. range LP side [bar] Pe [Max] |
12 bar |
|
Operat. range LP side [bar] Pe [Min] |
-1 bar |
|
Operat. range LP side [psig]Pe [Max] |
175 psig |
|
Operat. range LP side [psig]Pe [Min] |
-15 psig |
|
Packing format |
Multi pack |
|
Pressure connection size |
1/4 in |
|
Pressure connection standard |
DIN 8906 |
|
Pressure connection type |
Flare |
|
Pressure Male/Female |
Male |
|
Product accessories |
Generic accessories |
|
Product description |
Diff. Pressure Switch |
|
Product group |
Switches and thermostats |
|
Product name |
Differential pressure switch |
|
Quantity per packing format |
21 pc |
|
Refrigerants |
R11 |
|
Relay release time [s] |
120 s |
|
Reset function |
Manual Min |
|
Serviceable |
No |
|
Type |
MP54 |
|
UK RoHS compliance |
Out of scope |
|
UL approved refrigerants |
R11 |
