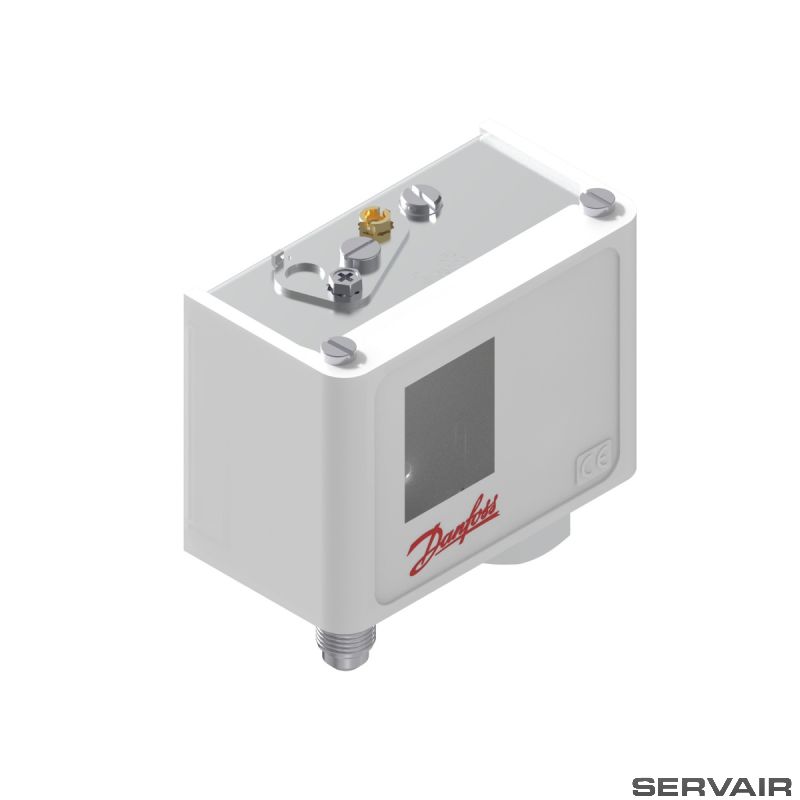

DANFOSS 060-201491 PRESSURE SWITCH
Danfoss Pressure Switch 060-201491
Regulation range [bar] Pe: 8.00 - 32.00
Differential [bar]: 1.80 - 6.00
Contact function: SPDT
Reset function: Auto
Pressure connection type: Flare
Pressure connection size: 1/4
Pressure Male/Female: Male
Enclosure rating IP: IP30
Max. Working Pressure [bar]: 32.0
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
0.362 Kilogram |
|
Net weight |
0.327 Kilogram |
|
Volume |
0.62 Liter |
|
EAN |
5702424497521 |
|
Amb. Temp. Note |
80 °C/176 °F for max 120 min |
|
Ambient temperature range [°C] [max] |
65 °C |
|
Ambient temperature range [°C] [min] |
-40 °C |
|
Ambient temperature range [°F] [Max] |
149 °F |
|
Ambient temperature range [°F] [Min] |
-40 °F |
|
Approval |
BV |
|
CE evaluated |
Yes |
|
CE evaluated |
Yes |
|
China RoHS compliance |
Yes |
|
Contact function |
SPDT |
|
Contact rating |
120Vac,16FLA,96LRA,3APilotDuty |
|
Differential [bar] [Max] |
6 bar |
|
Differential [bar] [Min] |
1.8 bar |
|
Differential [psi] [Max] |
87 psi |
|
Differential [psi] [Min] |
26 psi |
|
Electrical conn. Male/Female |
Female |
|
Electrical connection |
Swivel cable connector |
|
Electrical connection size |
NPSM 1/2 - 14 |
|
EN 60947 electrical properties |
Insulation: 400V |
|
EN 60947 wiring properties |
Flex, ferrules: 0.5-1.5 mm2 |
|
Enclosure rating IP |
IP30 |
|
Enclosure rating Nema (~) |
1 |
|
EU RoHS compliance |
Yes |
|
EU RoHS exemption clause |
No |
|
In scope of WEEE and contain batteries |
No |
|
Lubricants compatibility |
Oilfree applications |
|
Max. test pressure [bar] Pe |
35 bar |
|
Max. test pressure [psig] |
510 psig |
|
Max. Working Pressure [bar] |
32 bar |
|
Max. Working Pressure [psig] |
465 psig |
|
Oil free refrigerants |
R134a |
|
Packing format |
Multi pack |
|
Pressure connection size |
1/4 |
|
Pressure connection standard |
DIN 8906 |
|
Pressure connection type |
Flare |
|
Pressure Male/Female |
Male |
|
Pressure sensing element |
Bellows |
|
Product accessories |
Switches accessories |
|
Product description |
Pressure Switch |
|
Product Group |
Switches and thermostats |
|
Product name |
Pressure Switch |
|
Quantity per packing format |
36 pc |
|
REACH Candidate List substances 0.1 |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R113 |
|
Regulation range [bar] Pe [Max] |
32 bar |
|
Regulation range [bar] Pe [Min] |
8 bar |
|
Regulation range [psig] Pe [Max] |
464 psig |
|
Regulation range [psig] Pe [Min] |
116 psig |
|
Reset function |
Auto |
|
SCIP dossier no. |
b1323c86-8856-44cc-b1c6-6849abe37ee4 |
|
SCIP dossier product name |
KP/KPI pressure switch |
|
Serviceable |
No |
|
Type |
KP5 |
|
UK RoHS compliance |
Yes |
|
UL approval file name |
E31024 |
|
UL approved refrigerants |
R113 |
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
| Brand | Danfoss |
|---|
Product Attachments
