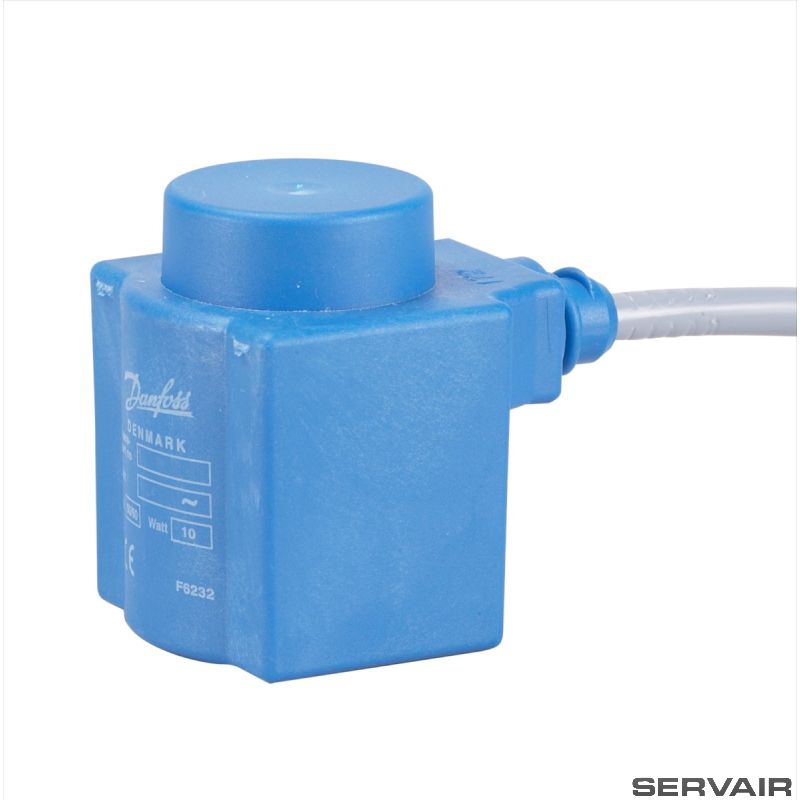

DANFOSS 018F6260 SOLENOID COIL
Danfoss Solenoid Coil 018F6260
Electrical connection: Cable
Supply voltage [V] AC: 115
Frequency [Hz]: 60 Hz
Enclosure rating IP: IP67
International Delivery (Outside of Trinidad & Tobago)
We deliver worldwide via courier or freight forwarder.
Most orders are shipped with UPS or DHL. If you have an account with a specified courier, please let us know your account details when you are placing the order.
For larger orders, we ship via ocean freight with our freight forwarder.
Delivery within Trinidad & Tobago)
All orders within Trinidad & Tobago will be delivered either by our in-house delivery service or via TTPost. Delivery is usually fulfilled locally within 0-2 business days.
For orders placed after 7am, delivery will be fulfilled on the following business day.
For orders placed before 7am, it’s possible that we can accommodate same-day delivery as our driver usually leaves our warehouse for daily deliveries between 7-8am.
If you require an item urgently, do let us know. We will do our best to accommodate your needs.
Returns
We do not facilitate international returns.
For local returns, only items returned within 14 days of their original shipment date in same as new condition and in the original packaging will be eligible for a refund or store credit with the original receipt. Restocking & sanitization fees will be charged upon return.
Help
Give us a shout if you have any other questions and/or concerns.
Email: info@servair.com
Phone:1(868)-658-1910 / 1911 / 2010
Product Details
|
Gross weight |
0.336 Kilogram |
|
Net weight |
0.297 Kilogram |
|
Volume |
0.859 Liter |
|
EAN |
5702428024891 |
|
Actuator size |
13.5 mm |
|
Ambient temperature range [°C] [max] |
80 °C |
|
Ambient temperature range [°C] [min] |
-40 °C |
|
Ambient temperature range [°F] [max] |
175 °F |
|
Ambient temperature range [°F] [min] |
-40 °F |
|
Approval |
LLC CDC TYSK |
|
Cable diameter [mm] |
6.6 mm |
|
Cable length [in] |
40 in |
|
Cable length [m] |
1 m |
|
China RoHS compliance |
Out of scope |
|
Coil connection |
Cable |
|
Coil design standard |
VDE 0580 |
|
Coil fastening |
Clip-on |
|
Coil winding insulation class |
Class H to IEC 85 |
|
Colour |
Blue |
|
Compliance |
EN 60730-1 |
|
Conductor area [mm2] |
3 x 0.75 mm2 |
|
Duty rating |
Continuous |
|
Electrical connection |
Cable |
|
Electrical connector |
3 core cable |
|
Enclosure rating IP |
IP67 |
|
EU RoHS compliance |
Out of scope |
|
Frequency [Hz] |
60 Hz |
|
In scope of WEEE and contain batteries |
No |
|
Packing format |
Multi pack |
|
Parts Program name |
EV210B |
|
Power consumption 50Hz [VA] |
19 VA |
|
Power consumption 60Hz [VA] |
22 VA |
|
Power consumption [W] 50Hz |
11 W |
|
Power consumption [W] 60Hz |
13 W |
|
Product accessories |
Solenoid coil accessories |
|
Product group |
Solenoid valves |
|
Product Name Description |
Solenoid coil |
|
Quantity per packing format |
24 pc |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Rel. Humidity [% RH] [max] |
100 % |
|
Rel. Humidity [% RH] [min] |
0 % |
|
SCIP dossier no. |
23785618-b379-4da7-a913-ecd40c8fae6d |
|
SCIP dossier product name |
Solenoid coils |
|
Serviceable |
No |
|
Spare part number |
018F6260 |
|
Supply voltage 50Hz Max [V] |
100 V |
|
Supply voltage 60Hz Max [V] |
115 V |
|
Supply voltage [V] AC |
115 V |
|
Type |
BF115CS |
|
Type designation |
BF115CS |
|
UK RoHS compliance |
Out of scope |
We ship worldwide! Want this item shipped outside of Trinidad & Tobago?
Please leave us a live chat message with your shipping address and the quantity and item you are interested in.
| Brand | Danfoss |
|---|
Product Attachments
