ABB 1SAM201913R1103 S1-M3-35 3-PHASE POWER INFEED BLOCK

SKU
AXXX-CNT03
TTD 45.00
In stock

ABB Logo

ABB 24V 3-PHASE POWER INFEED BLOCK
Extended product type: S1-M3-35
Product ID: 1SAM201913R1103

Catalog Description: S1-M3-35 3-phase power infeed block Flat, for MS116 / MS132, 35mm2, Type E

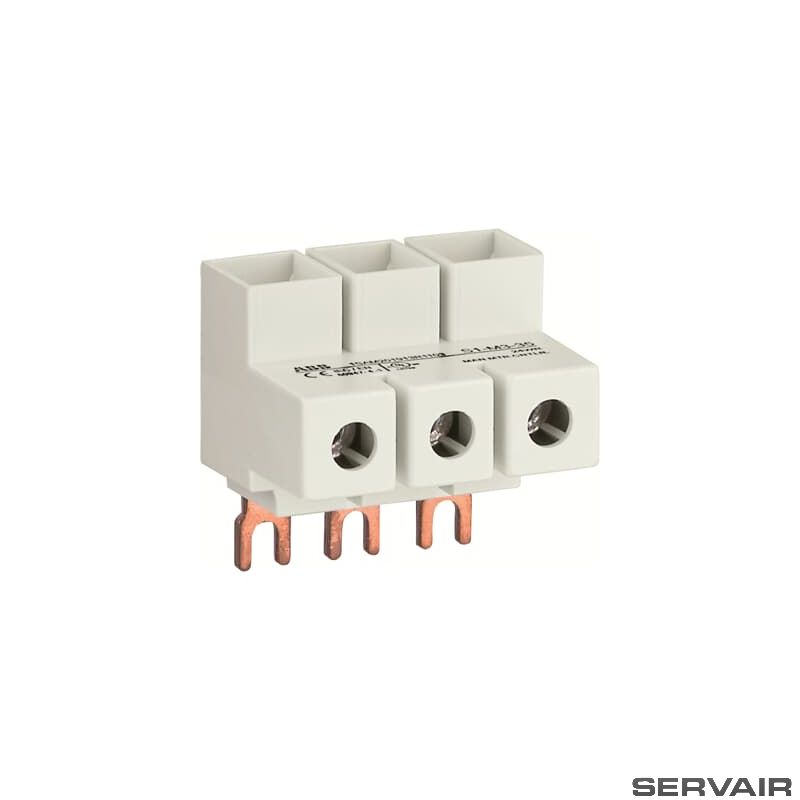

S1-M3-35 three phase feeder terminals allow the connection of bigger cable cross sections up to 35mm². They are usable with MS116 and MS132 manual motor starters. The rated current is 100 A. S1-M3-35 can also be used for line-side terminal spacing on MS132 which allows their usage in Type E / Type F applications.


Technical Specifications

Terminal Type:

Screw Terminals

Rated Operational Voltage:

690 V AC

250 V DC

Rated Operational Current (Ie):

100 A

Number of Poles:

3

Degree of Protection:

IP20

Connecting Capacity Main Circuit:

Flexible with Ferrule 1x 10 ... 35 mm²

Flexible with Insulated Ferrule 1x 10 ... 35 mm²

Flexible 1x 10 ... 35 mm²

Rigid 1x 10 ... 35 mm²

Tightening Torque:

Main Circuit 4.5 N·m

Wire Stripping Length:

Main Circuit 12 mm

Recommended Screw Driver:

Hexgon SW4

Standards:

IEC/EN 60947-1

IEC/EN 60947-4-1

UL 60947-1

UL 60947-4-1

Product Name:

Power Infeed Block

Suitable For:

MS116

MS132

MO132

Suitable for Product Class:

Manual Motor Starter

Accessory Group:

Electrical

Accessory Type:

3-Phase Power Infeed Block

Remarks:

UL/CSA Type E/F and IEC

Technical UL/CSA

Maximum Operating Voltage UL/CSA:

Main Circuit 600 V AC

Connecting Capacity Main Circuit UL/CSA:

Flexible 1x 8-2 AWG

Stranded 1x 8-2 AWG

Tightening Torque UL/CSA:

Main Circuit 40 in·lb

Environmental

Ambient Air Temperature:

Operation -25 ... +70 °C

Storage -50 ... +80 °C

Material Compliance

RoHS Status:

Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

WEEE B2C / B2B:

Business To Business

WEEE Category:

Small Equipment (No External Dimension More Than 50 cm)

Classifications

Object Classification Code:

X

ETIM 4:

EC002498 - Accessories for low-voltage switch technology

ETIM 5:

EC000275 - Rail terminal bar

ETIM 6:

EC000275 - Rail terminal bar

ETIM 7:

EC000275 - Rail terminal bar

ETIM 8:

EC000275 - Rail terminal bar

eClass:

V11.0 : 27400603

UNSPSC:

39121117

IDEA Granular Category Code (IGCC):

4378 >> Phase busbar

E-Number (Finland):

3705960

E-Number (Sweden):

3112083
